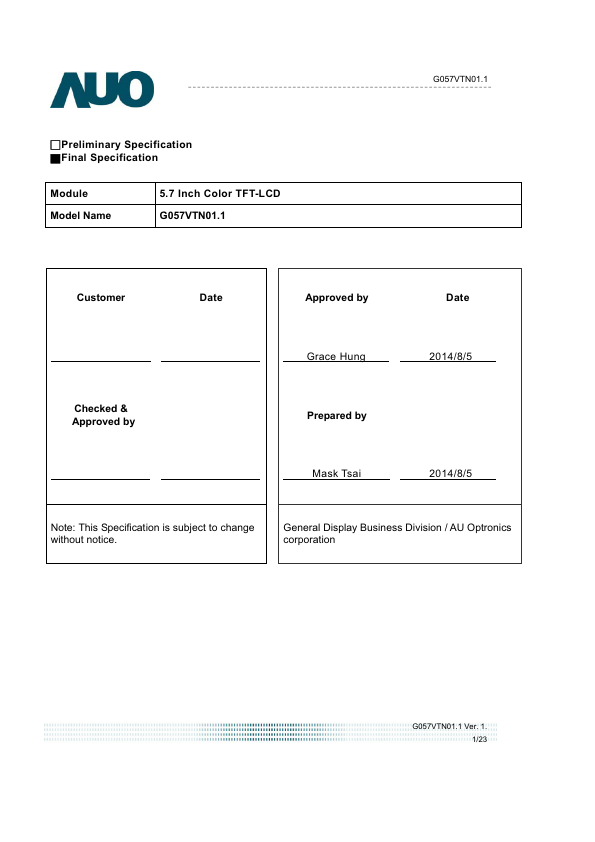

G057VTN01.1 Datasheet Text
ϭPreliminary Specification ϮFinal Specification
Module Model Name
5.7 Inch Color TFT-LCD G057VTN01.1
Customer
Date
Approved by
Date
Grace Hung
2014/8/5
Checked & Approved by
Prepared by
Mask Tsai
2014/8/5
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
G057VTN01.1 Ver. 1. 1/23

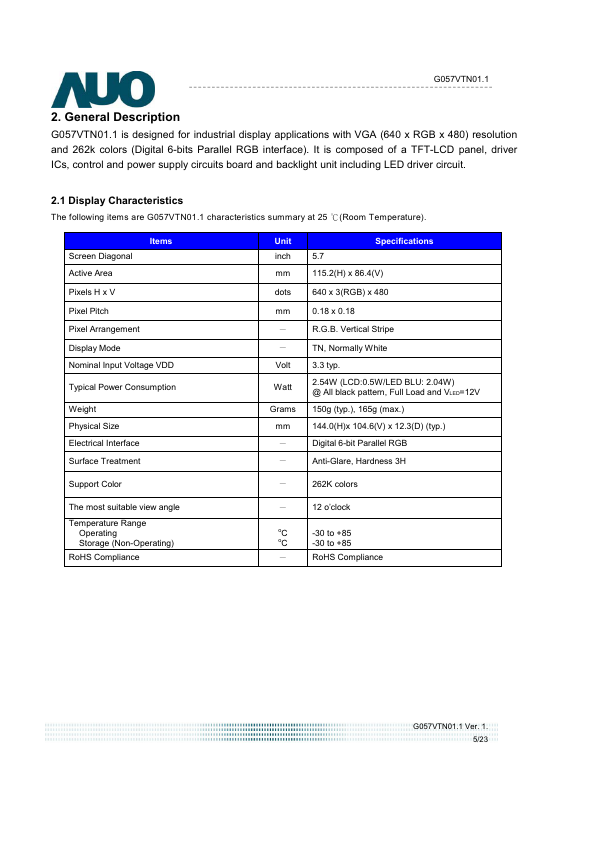

2. General Description
G057VTN01.1 is designed for industrial display applications with VGA (640 x RGB x 480) resolution and 262k colors (Digital 6-bits Parallel RGB interface). It is posed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit.
2.1 Display Characteristics
The following items are G057VTN01.1 characteristics summary at 25 к(Room Temperature).
Screen Diagonal Active Area
Items
Pixels H x V
Pixel Pitch
Pixel Arrangement
Display Mode Nominal Input Voltage VDD
Typical Power Consumption
Weight Physical Size Electrical Interface Surface Treatment
Unit inch mm dots mm Ё Ё Volt

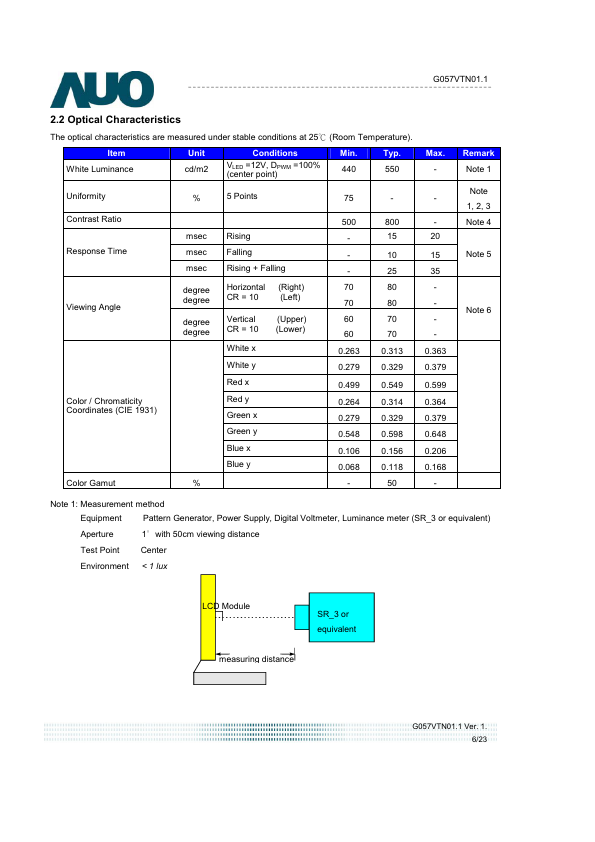

Watt...
