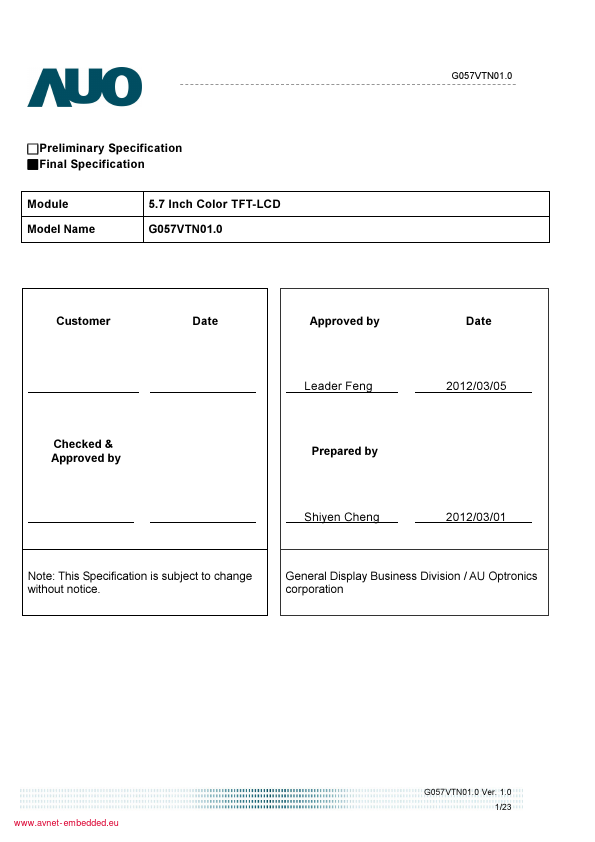

G057VTN01.0 Datasheet Text
ϭPreliminary Specification ϮFinal Specification
Module Model Name
5.7 Inch Color TFT-LCD G057VTN01.0
Customer
Date
Approved by
Date
Leader Feng
2012/03/05
Checked & Approved by
Prepared by
Shiyen Cheng
2012/03/01
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
.avnet-embedded.eu
G057VTN01.0 Ver. 1.0 1/23

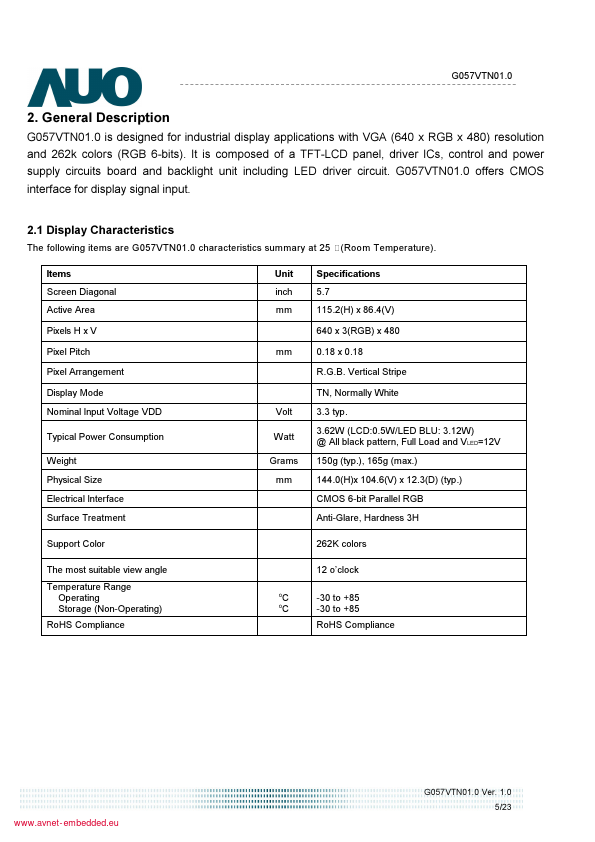

2. General Description
G057VTN01.0 is designed for industrial display applications with VGA (640 x RGB x 480) resolution and 262k colors (RGB 6-bits). It is posed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit. G057VTN01.0 offers CMOS interface for display signal input.
2.1 Display Characteristics
The following items are G057VTN01.0 characteristics summary at 25 (Room Temperature).
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
Typical Power Consumption
Weight Physical Size Electrical Interface Surface Treatment
Unit inch mm mm
Volt Watt Grams mm
Specifications 5.7 115.2(H) x 86.4(V) 640 x 3(RGB) x 480 0.18 x 0.18 R.G.B. Vertical Stripe TN, Normally White 3.3 typ. 3.62W (LCD:0.5W/LED BLU: 3.12W) @ All black pattern, Full Load and VLED=12V 150g (typ.), 165g (max.) 144.0(H)x 104.6(V) x 12.3(D) (typ.) CMOS 6-bit Parallel RGB Anti-Glare, Hardness 3H
Support Color
262K colors

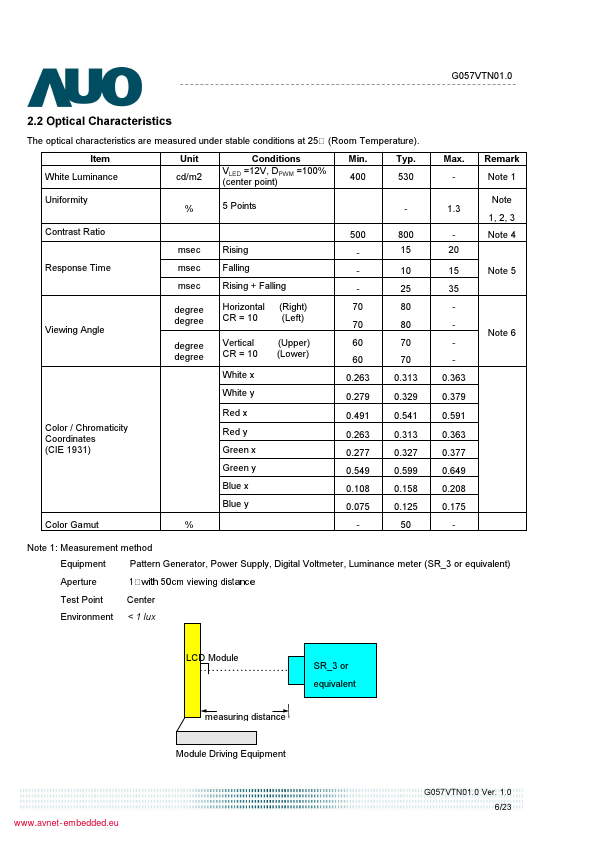

The most suitable view angle...
