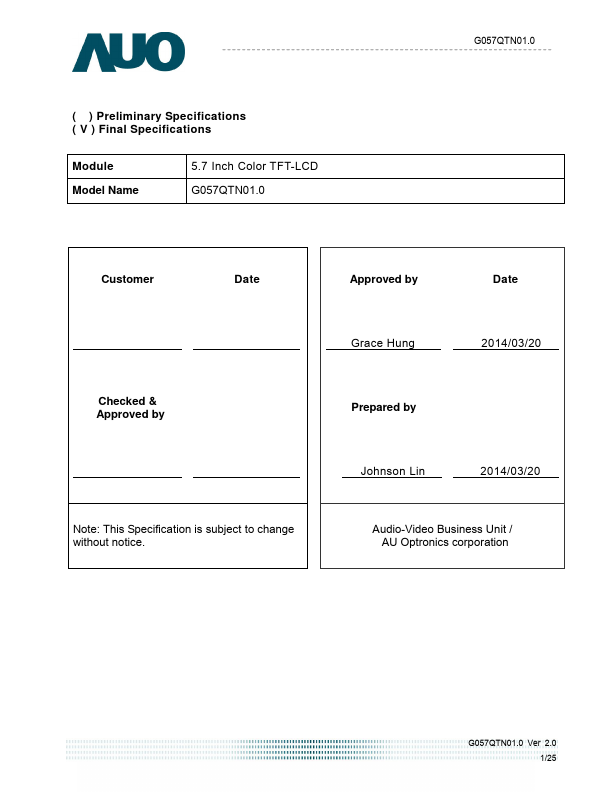

G057QTN01.0 Datasheet Text
( ) Preliminary Specifications ( V ) Final Specifications
Module Model Name
5.7 Inch Color TFT-LCD G057QTN01.0
Customer
Date
Approved by
Date
Checked & Approved by
Note: This Specification is subject to change without notice.
Grace Hung
2014/03/20
Prepared by
Johnson Lin
2014/03/20
Audio-Video Business Unit / AU Optronics corporation
G057QTN01.0 Ver 2.0 1/25

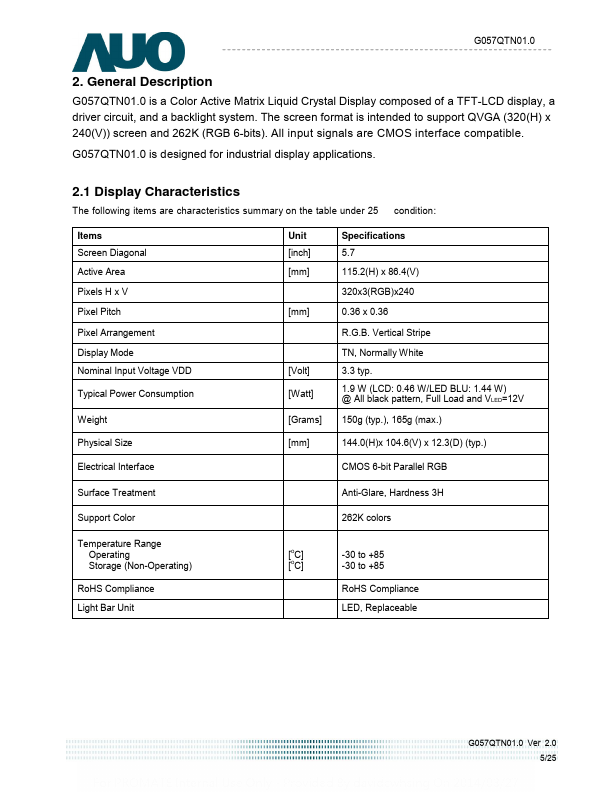

2. General Description
G057QTN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support QVGA (320(H) x 240(V)) screen and 262K (RGB 6-bits). All input signals are CMOS interface patible.
G057QTN01.0 is designed for industrial display applications.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 Ċ condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD Typical Power Consumption
Weight Physical Size
Electrical Interface
Unit [inch] [mm]
[mm]
[Volt] [Watt] [Grams] [mm]
Specifications 5.7 115.2(H) x 86.4(V) 320x3(RGB)x240 0.36 x 0.36 R.G.B. Vertical Stripe TN, Normally White 3.3 typ. 1.9 W (LCD: 0.46 W/LED BLU: 1.44 W) @ All black pattern, Full Load and VLED=12V 150g (typ.), 165g (max.)
144.0(H)x 104.6(V) x 12.3(D) (typ.)

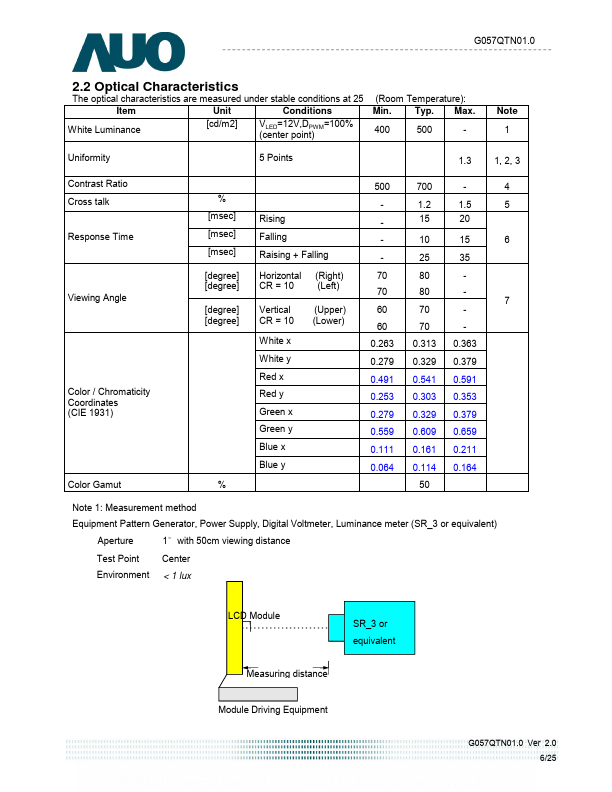

CMOS 6-bit Parallel RGB...
