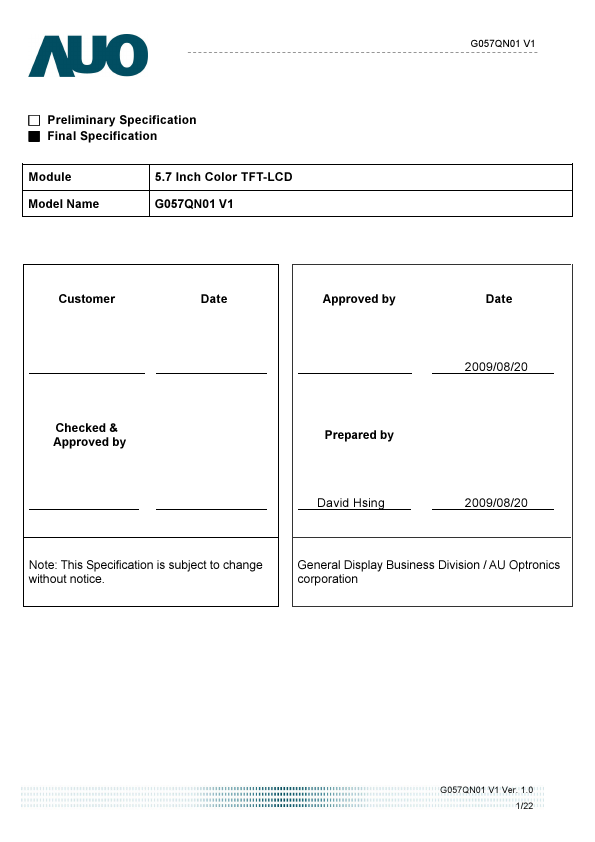

- Preliminary Specification
- Final Specification
Module Model Name
5.7 Inch Color TFT-LCD G057QN01 V1
G057QN01 V1
Customer
Date
Approved by
Date
2009/08/20
Checked & Approved by
Prepared by
David Hsing
2009/08/20
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
G057QN01 V1 Ver. 1.0 1/22
..net
G057QN01 V1

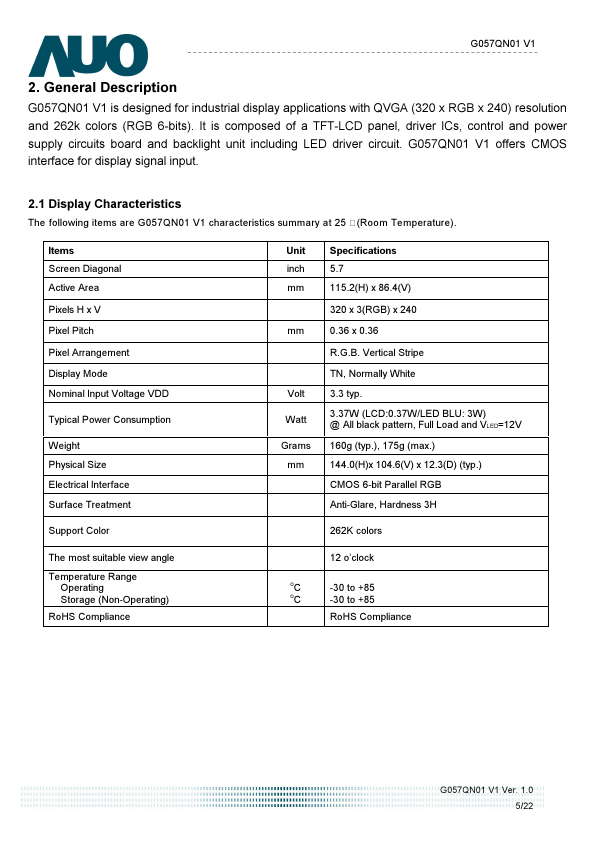

2. General Description
G057QN01 V1 is designed for industrial display applications with QVGA (320 x RGB x 240) resolution and 262k colors (RGB 6-bits). It is posed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit. G057QN01 V1 offers CMOS interface for display signal input.
2.1 Display Characteristics
The following items are G057QN01 V1 characteristics summary at 25 (Room Temperature).
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD
Typical Power Consumption
Weight Physical Size Electrical Interface Surface Treatment
Unit inch mm mm
Volt Watt Grams mm
Specifications 5.7 115.2(H) x 86.4(V) 320 x 3(RGB) x 240 0.36 x 0.36 R.G.B. Vertical Stripe TN, Normally White 3.3 typ. 3.37W (LCD:0.37W/LED BLU: 3W) @ All black pattern, Full Load and VLED=12V 160g (typ.), 175g (max.) 144.0(H)x 104.6(V) x 12.3(D) (typ.) CMOS 6-bit Parallel RGB Anti-Glare, Hardness 3H...
