US5D308 - 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator

The US5D308 by ultrasilicon is a 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator. Below is the official datasheet preview.

📥 Download Datasheet

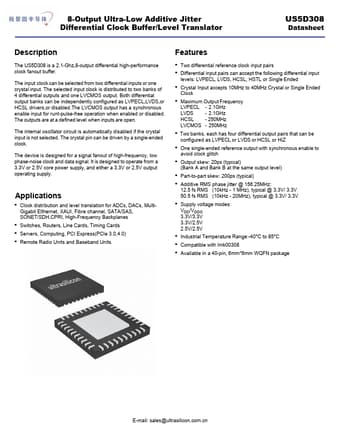

US5D308 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator by ultrasilicon - Datasheet Preview — Official preview page of the **US5D308** 8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator datasheet (ultrasilicon).

Datasheet Details

Part number	US5D308
Manufacturer	ultrasilicon
File Size	912.42 KB
Description	8-Output Ultra-Low Additive Jitter Differential Clock Buffer/Level Translator
Datasheet	US5D308-ultrasilicon.pdf
Additional preview pages of the US5D308 datasheet.

US5D308 Product details

Description

The US5D308 is a 2.1-Ghz,8-output differential high-performance clock fanout buffer.

Features

Two differential reference clock input pairs.
Differential input pairs can accept the following differential input levels: LVPECL, LVDS, HCSL, HSTL or Single Ended.
Crystal Input accepts 10MHz to 40MHz Crystal or Single Ended Clock.
Maximum Output Frequency LVPECL - 2.1GHz LVDS - 2.1GHz HCSL - 250MHz LVCMOS - 250MHz.
Two banks, each has four differential output pairs that can be configured as LVPECL or LVDS or HCSL or HiZ.
One single-ended r.
