US5D, US5A - Ultra Fast Rectifier

Name: US5D
SKU: US5D-1433561

MCC

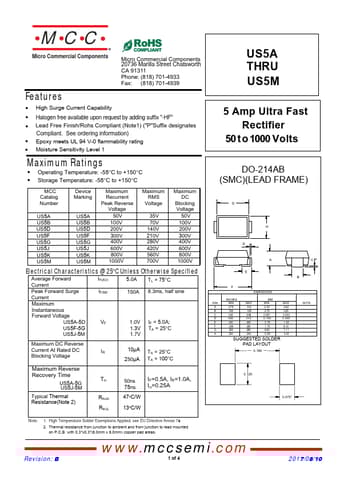

The US5D by MCC is a Ultra Fast Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	US5D, US5A
Manufacturer	MCC
File Size	660.30 KB
Description	Ultra Fast Rectifier
Datasheet	US5A-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: US5D, US5A. Please refer to the document for exact specifications by model.
Additional preview pages of the US5D datasheet.

High Surge Current Capability.
Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C MCC Catalog Number US5A US5B US5D US5F US5G US5J US5K US5M Device Marking U.
