RG1005 - Resistor

RG1005 Description

Thin film surface mount resistors RG series (This series now includes the former RGH series.) Specifications Dimensions .

RG1005 Features

* Ultimate chip resistors: the result of all of our thin film technology expertise including inorganic passivation Resistance drift: less than +/-0.1% after 10000 hour accelerated reliability test +/-0.02% of resistance tolerance and +/-5ppm/°C of temperature coefficient of resistance Excellent toleran

RG1005 Applications

* Any applications that require precision resistors such as automotive electronics, industrial test and measurement equipment, and consumer electronics Electrical characteristics 7 Complete Product Catalogue Thin Film Product Reliability characteristics Thin film surface mount resistors RG series

📥 Download Datasheet

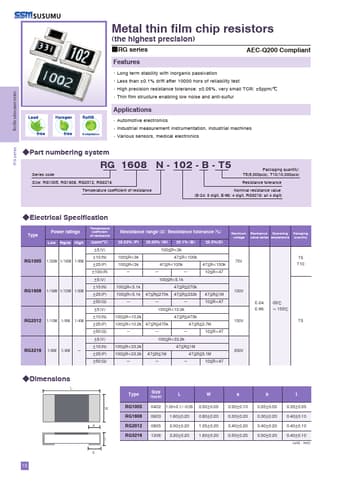

Preview of RG1005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RG1005
Manufacturer
susumu
File Size
206.15 KB
Datasheet
RG1005-susumu.pdf
Description
Resistor
