RG10YA, RG10 - SUPER FAST RECTIFIER DIODES

RG10YA Description

www.eicsemi.com RG10 - RG10Y PRV : 70 - 600 Volts Io : 1.0 - 1.5 Amperes SUPER FAST RECTIFIER DIODES DO-15 .

RG10YA Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Super fast recovery time
* Pb / RoHS Free 0.142 (3.6) 0.102 (2.6) 1.00 (25.4) MIN. 0.300 (7.6) 0.230 (5.8) MECHANICAL DATA :
* Case : D

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RG10YA, RG10. Please refer to the document for exact specifications by model.

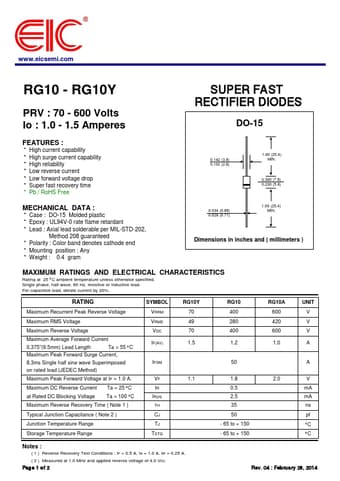

datasheet Preview Page 2

Datasheet Details

Part number
RG10YA, RG10
Manufacturer
EIC
File Size
83.18 KB
Datasheet
RG10_EICdiscreteSemiconductors.pdf
Description
SUPER FAST RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: RG10YA, RG10.
Please refer to the document for exact specifications by model.
