PE8203A - N-Channel Enhancement Mode Power MOSFET

semi one

📥 Download Datasheet

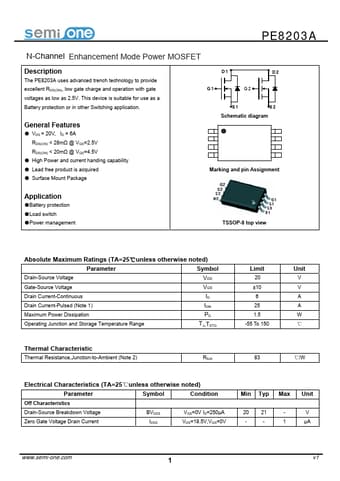

PE8203A Datasheet Preview — Preview of PE8203A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PE8203A
Manufacturer	semi one
File Size	806.78 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE8203A-semione.pdf

PE8203A Product details

Description

The PE8203A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = 20V, ID = 6A RDS(ON) < 28mΩ @ VGS=2.5V RDS(ON) < 20mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package D1 G1 G2 D2 S1 S2 Schematic diagram Marking and pin Assignment.
