PE2302A - N-Channel Enhancement Mode Power MOSFET

semi one

📥 Download Datasheet

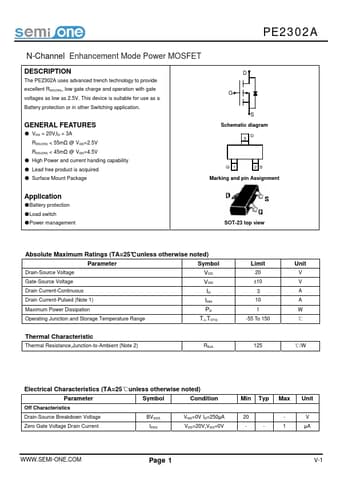

PE2302A Datasheet Preview — Preview of PE2302A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PE2302A
Manufacturer	semi one
File Size	184.58 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PE2302A-semione.pdf

PE2302A Product details

Description

The PE2302A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

Features

VDS = 20V,ID = 3A RDS(ON) < 55mΩ @ VGS=2.5V RDS(ON) < 45mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package D G S Schematic diagram 3D G1 2S Marking and pin Assignment.
