UF4C120070B7S - SiC Cascode JFET

qorvo

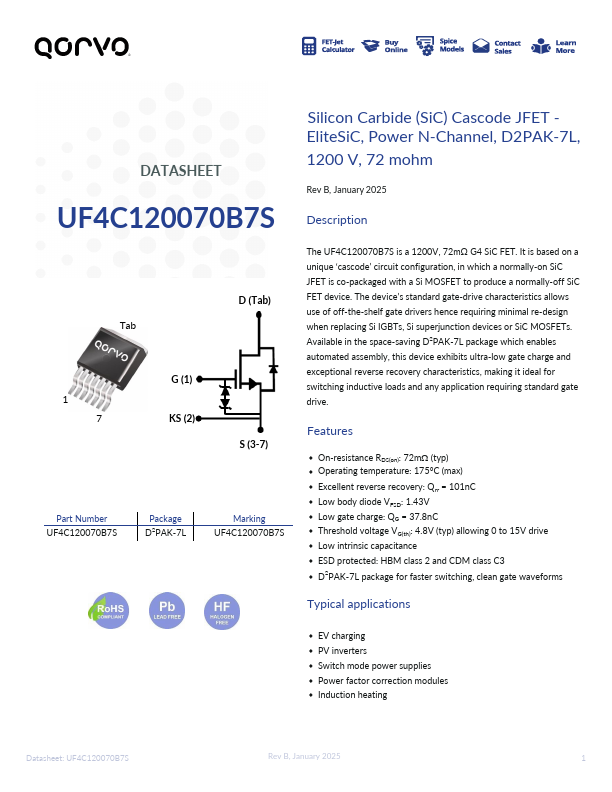

The UF4C120070B7S by qorvo is a SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

UF4C120070B7S SiC Cascode JFET by qorvo - Datasheet Preview — Official preview page of the **UF4C120070B7S** SiC Cascode JFET datasheet (qorvo).

Datasheet Details

Part number	UF4C120070B7S
Manufacturer	qorvo
File Size	1.43 MB
Description	SiC Cascode JFET
Datasheet	UF4C120070B7S-qorvo.pdf

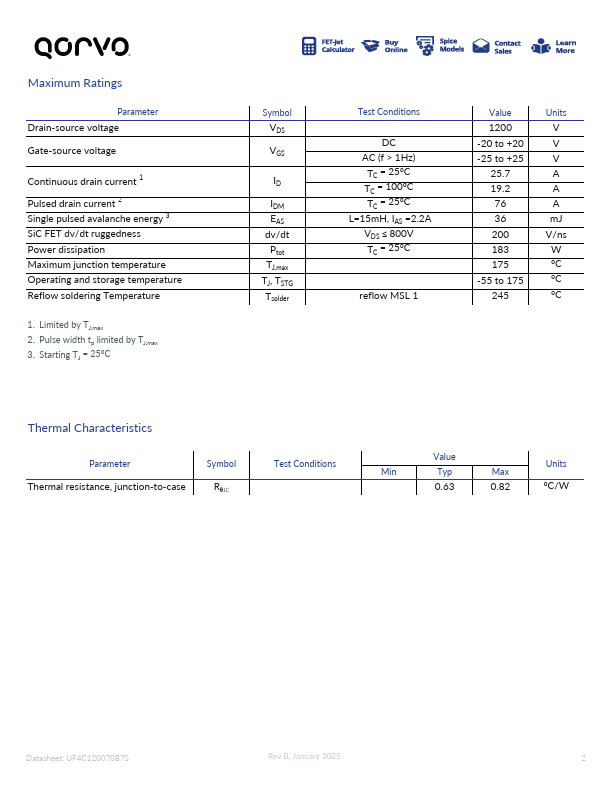

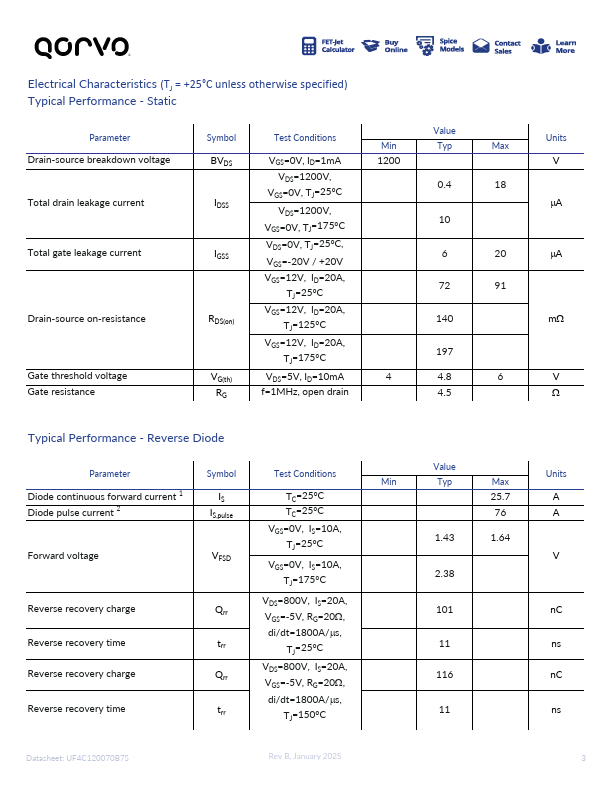

Additional preview pages of the UF4C120070B7S datasheet.

UF4C120070B7S Product details

Description

D (Tab) Tab 1 7 G (1) KS (2) S (3-7) Part Number UF4C120070B7S Package D2PAK-7L Marking UF4C120070B7S The UF4C120070B7S is a 1200V, 72mΩ G4 SiC FET.It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers hence requiring minimal re-design when replacing Si IGBTs, Si superjunction devices or SiC

Features

w On-resistance RDS(on): 72mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 101nC w Low body diode VFSD: 1.43V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected: HBM class 2 and CDM class C3 w D2PAK-7L package for faster switching, clean gate waveforms Typical.
