UF4C120053K3S - SiC Cascode JFET

Description

The UF4C120053K3S is a 1200 V, 53 mW G4 SiC FET.

on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device.

Features

  • On-resistance RDS(on): 53 mW.
  • Maximum Operating Temperature of 175 C.
  • Excellent Reverse Recovery: Qrr = 117 nC.
  • Low Body Diode VFSD: 1.28 V.
  • Low Gate Charge: QG = 37.8 nC.
  • Threshold Voltage VG(th): 4.8 V (typ) Allowing 0 to 15 V Drive.
  • Low Intrinsic Capacitance.
  • ESD Protected: HBM Class 2 and CDM Class C3.
  • This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF4C120070B7S SiC Cascode JFET qorvo
UF4001 1.0A ULTRAFAST DIODE WON-TOP
UF4001 400V 1A silicon rectifier Invac
UF4001 ULTRA FAST RECOVERY RECTIFIERS Digitron Semiconductors
UF4001 Ultrafast Plastic Rectifier Vishay

Other Datasheets by onsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

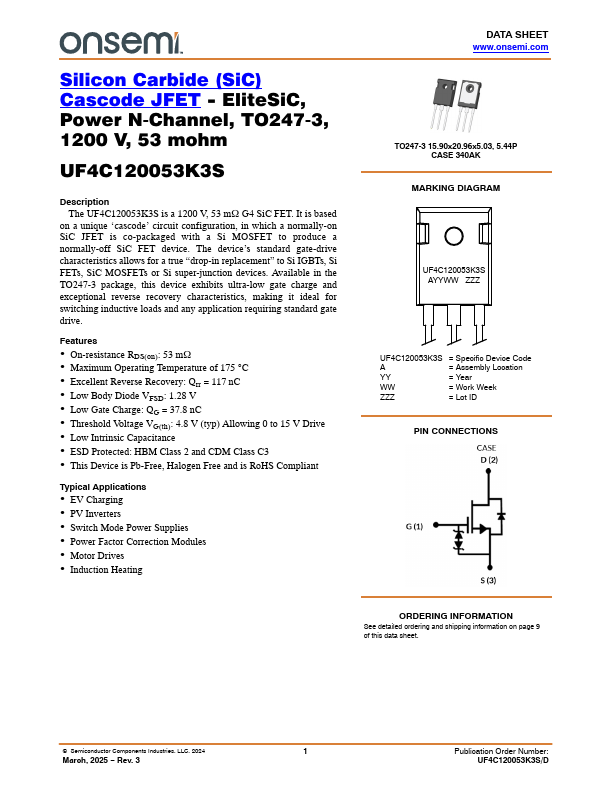

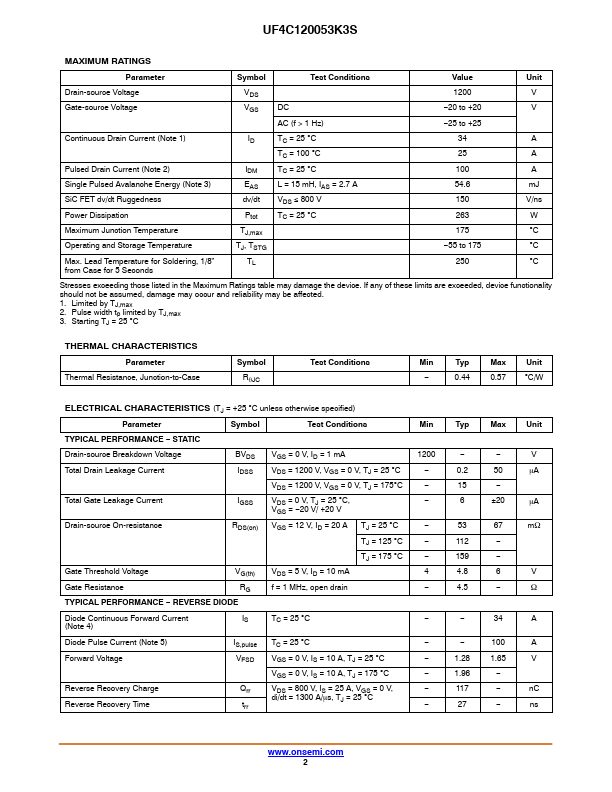

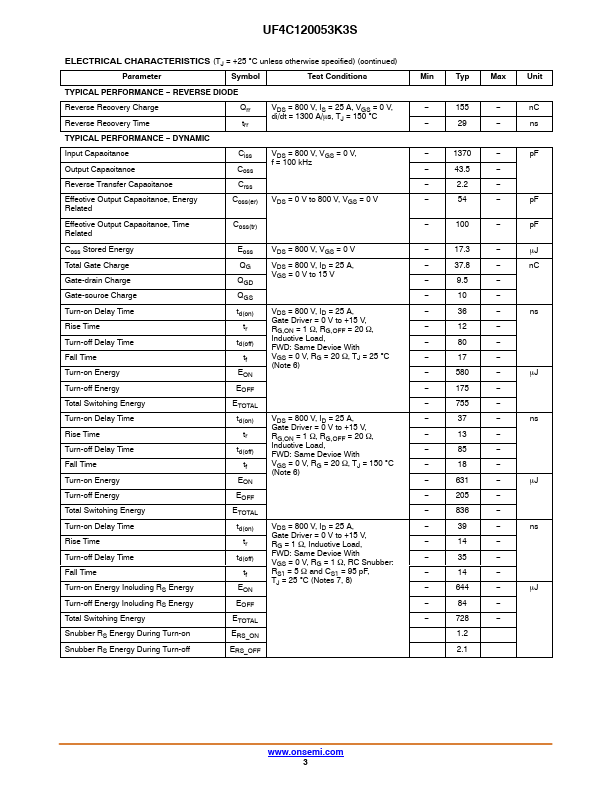

Silicon Carbide (SiC) Cascode JFET - EliteSiC, Power N-Channel, TO247-3, 1200 V, 53 mohm UF4C120053K3S Description The UF4C120053K3S is a 1200 V, 53 mW G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to Si IGBTs, Si FETs, SiC MOSFETs or Si super-junction devices. Available in the TO247-3 package, this device exhibits ultra-low gate charge and exceptional reverse recovery characteristics, making it ideal for switching inductive loads and any application requiring standard gate drive.
