QPL8834 12dB CATV Amplifier

Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces 50 * 1218 MHz 5V Evaluation Board with 5 pc sample bag 5 * 700 MHz Evaluation Board, 5 V 50 * 1218 MHz Evaluation Board, 8 V 5 * 700 MHz Evaluation Board, 8 V Applications * DOCSIS 3.1.

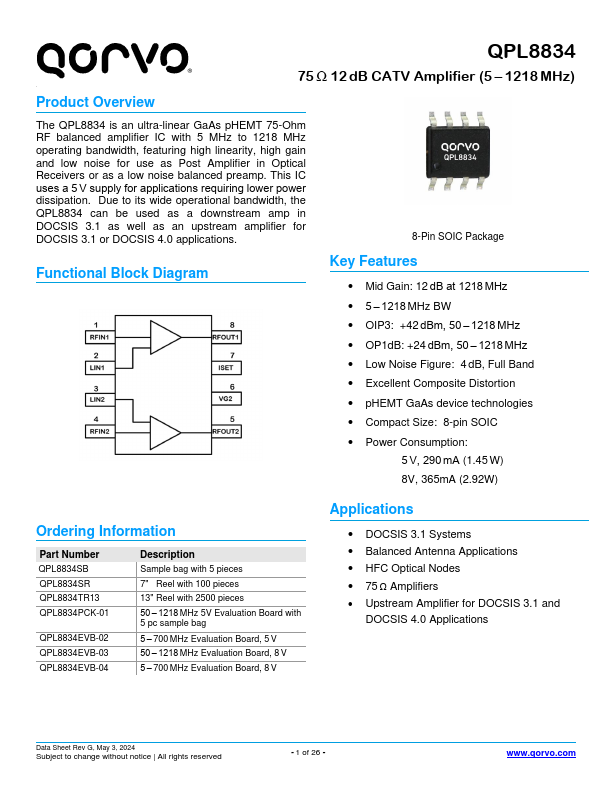

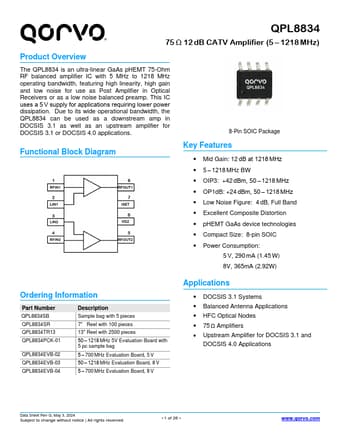

QPL8834 ® ))) Product Overview 75 Ω 12 dB CATV Amplifier (5 1218 MHz) The QPL8834 is an ultra-linear GaAs pHEMT 75-Ohm RF balanced amplifier IC with 5 MHz to 1218 MHz operating bandwidth, featuring high linearity, high gain and low noise for use as Post Amplifier in Optical Receivers or as a low noise balanced preamp. This IC uses a 5 V supply for applications requiring lower power dissipation. Due to its wide operational bandwidth, the QPL8834 can be used as a downstream amp in DOC.

QPL8834 Features

* Mid Gain: 12 dB at 1218 MHz

* 5

* 1218 MHz BW

* OIP3: +42 dBm, 50

* 1218 MHz

* OP1dB: +24 dBm, 50

* 1218 MHz

* Low Noise Figure: 4 dB, Full Band

* Excellent Composite Distortion

* pHEMT GaAs device technologies

QPL8834 Datasheet (1.03 MB)

QPL8834 Datasheet Preview — Preview of QPL8834 PDF

Datasheet Details

Part number:

QPL8834

Manufacturer:

qorvo

File Size:

1.03 MB

Description:

12db catv amplifier.
