QPL1819 20dB CATV Amplifier

Evaluation Board Sample bag with 5 pieces 7” Reel with 100 pieces 7” Reel with 2500 pieces Applications * DOCSIS 4.0 Amplifiers * DOCSIS 4.0 Optical Nodes * DOCSIS 4.0 Remote PHY Devices * FTTH GPON and GEPON * DOCSIS 4.0 Cable Modem and Home Gateways

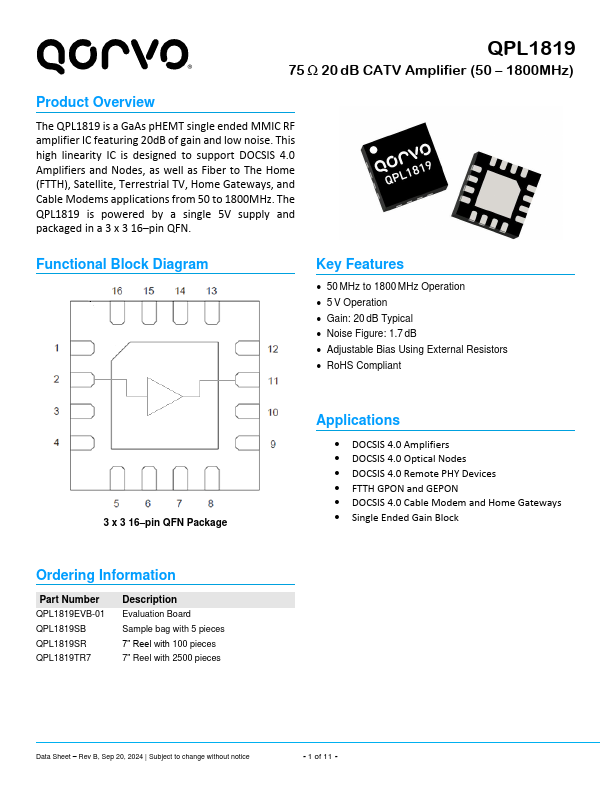

QPL1819 ® 75 Ω 20 dB CATV Amplifier (50 1800MHz) Product Overview The QPL1819 is a GaAs pHEMT single ended MMIC RF amplifier IC featuring 20dB of gain and low noise. This high linearity IC is designed to support DOCSIS 4.0 Amplifiers and Nodes, as well as Fiber to The Home (FTTH), Satellite, Terrestrial TV, Home Gateways, and Cable Modems applications from 50 to 1800MHz. The QPL1819 is powered by a single 5V supply and packaged in a 3 x 3 16 pin QFN. Functional Block Diagra.

QPL1819 Features

* 50 MHz to 1800 MHz Operation

* 5 V Operation

* Gain: 20 dB Typical

* Noise Figure: 1.7 dB

* Adjustable Bias Using External Resistors

* RoHS Compliant 3 x 3 16

* pin QFN Package Ordering Information Part Number QPL1819EVB-01 QPL1819SB QPL1819

QPL1819 Datasheet (699.47 KB)

QPL1819 Datasheet Preview — Preview of QPL1819 PDF

Datasheet Details

Part number:

QPL1819

Manufacturer:

Qorvo

File Size:

699.47 KB

Description:

20db catv amplifier.
