ABT-402-RC - Piezo Buzzer

Product Overview

Datasheet Details

Part number	ABT-402-RC
Manufacturer	pro-SIGNAL
File Size	122.26 KB
Description	Piezo Buzzer
Datasheet	ABT-402-RC Datasheet
Note	This datasheet PDF includes multiple part numbers: ABT-402-RC, ABT-402-RC-pro. Please refer to the document for exact specifications by model.

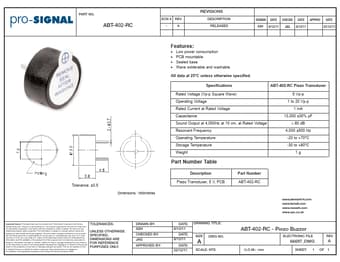

Additional preview pages of the ABT-402-RC datasheet.

Product details

Description

RELEASED DRAWN DATE CHECKD DATE APPRVD DATE ASH 8/12/11 JAG 8/12/11 22/12/11 Tolerance: ±0.5 Dimensions : Millimetres Important Notice: This data sheet and its contents (the "Information") belong to the Premier Farnell Group (the "Group") or are licensed to it.No licence is granted for the use of it other than for information purposes in connection with the products to which it relates.No licence of any intellectual property rights is granted.The Information is subject to change without

Features

Low power consumption.
PCB mountable.
Sealed base.
Wave solderable and washable All data at 25°C unless otherwise specified. Specifications ABT-402-RC Piezo Transducer Rated Voltage (Vp-p Square Wave) Operating Voltage Rated Current at Rated Voltage Capacitance Sound Output at 4,000Hz at 10 cm, at Rated Voltage Resonant Frequency Operating Temperature Storage Temperature Weight 5 Vp-p 1 to 20 Vp-p 1 mA 13,000 ±30% pF ≥ 80 dB 4,000 ±500 Hz -20 to +70°C -3.
