ABT245B - OCTAL BUS TRANSCEIVERS

Description

These octal bus transceivers are designed for asynchronous communication between data buses.

The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.

Texas Instruments

📥 Download Datasheet

Datasheet Details

Part number	ABT245B
Manufacturer	Texas Instruments
File Size	2.24 MB
Description	OCTAL BUS TRANSCEIVERS
Datasheet	ABT245B Datasheet

📁 Similar Datasheet

ABT22V10A5 - 5V high-speed universal PLD (NXP)
ABT22V10A7 - 5V high-speed universal PLD (Philips)
ABT-402-RC - Piezo Buzzer (pro-SIGNAL)
ABT-402-RC - Piezo Transducer (ABC)
ABT-405-RC - Piezo Transducer (ABC)
ABT-405-RC - Piezo Transducer (pro-SIGNAL)
ABT-407-RC - Audio Transducer (pro-SIGNAL)
ABT-410-RC - Piezo Buzzer (pro-SIGNAL)
ABT-410-RC - Electro Mechanical Transducer (ABC)
ABT15S20BCT - HIGH VOLTAGE SCHOTTKY DIODE (Advanced Power Technology)

Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

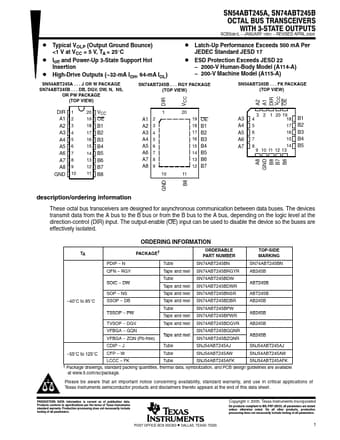

SN54ABT245A, SN74ABT245B OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS SCBS081L − JANUARY 1991 − REVISED APRIL 2005 D Typical VOLP (Output Ground Bounce) <1 V at VCC = 5 V, TA = 25°C D Ioff and Power-Up 3-State Support Hot Insertion D High-Drive Outputs (−32-mA IOH, 64-mA IOL) D Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD 17 D ESD Protection Exceeds JESD 22 − 2000-V Human-Body Model (A114-A) − 200-V Machine Model (A115-A) SN54ABT245A . . . J OR W PACKAGE SN74ABT245B . . . DB, DGV, DW, N, NS, OR PW PACKAGE (TOP VIEW) SN74ABT245B . . . RGY PACKAGE (TOP VIEW) SN54ABT245B . . .
