UJ3D1250K2 - 1200V SiC Diode

onsemi

The UJ3D1250K2 by onsemi is a 1200V SiC Diode. Below is the official datasheet preview.

📥 Download Datasheet

UJ3D1250K2 1200V SiC Diode by onsemi - Datasheet Preview — Official preview page of the **UJ3D1250K2** 1200V SiC Diode datasheet (onsemi).

Datasheet Details

Part number	UJ3D1250K2
Manufacturer	onsemi
File Size	666.53 KB
Description	1200V SiC Diode
Datasheet	UJ3D1250K2-onsemi.pdf

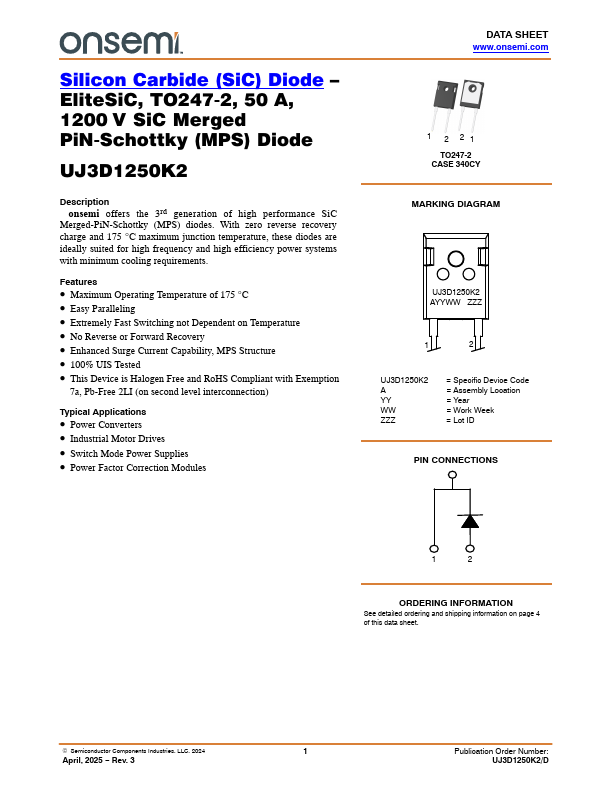

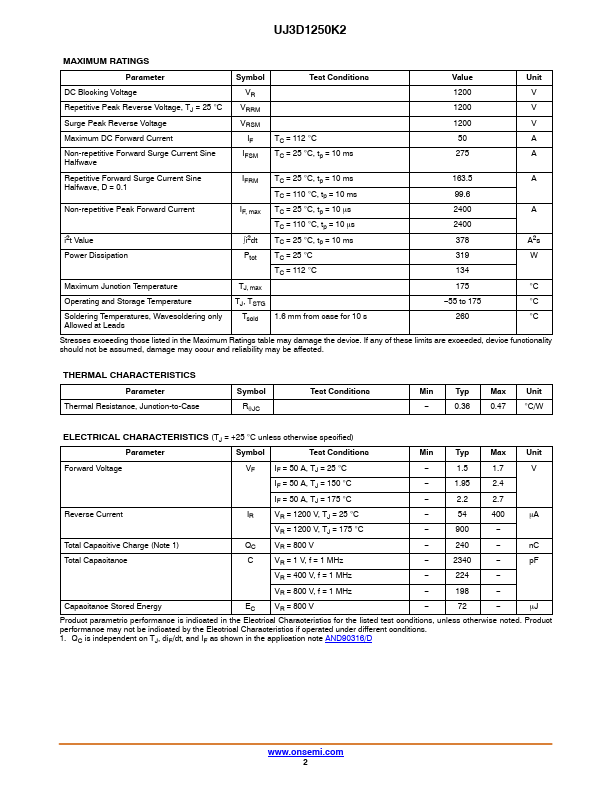

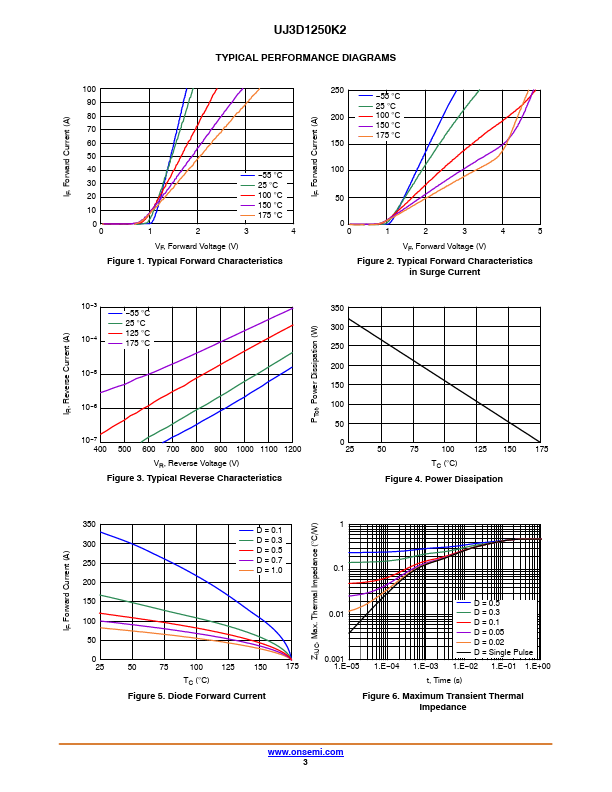

Additional preview pages of the UJ3D1250K2 datasheet.

UJ3D1250K2 Product details

Description

onsemi offers the 3rd generation of high performance SiC Merged-PiN-Schottky (MPS) diodes.With zero reverse recovery charge and 175 °C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling requirements.

Features

Maximum Operating Temperature of 175 °C.
Easy Paralleling.
Extremely Fast Switching not Dependent on Temperature.
No Reverse or Forward Recovery.
Enhanced Surge Current Capability, MPS Structure.
100% UIS Tested.
This Device is Halogen Free and RoHS Compliant with Exemption 7a, Pb-Free 2LI (on second level interconnection) Typical.
