UJ3D06530TS - SiC Diode

onsemi

The UJ3D06530TS by onsemi is a SiC Diode. Below is the official datasheet preview.

📥 Download Datasheet

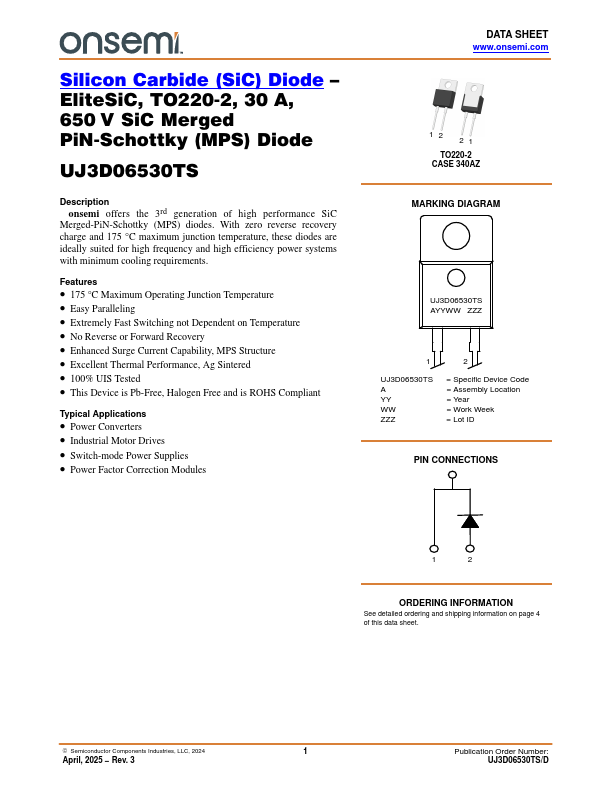

UJ3D06530TS SiC Diode by onsemi - Datasheet Preview — Official preview page of the **UJ3D06530TS** SiC Diode datasheet (onsemi).

Datasheet Details

Part number	UJ3D06530TS
Manufacturer	onsemi
File Size	344.16 KB
Description	SiC Diode
Datasheet	UJ3D06530TS-onsemi.pdf

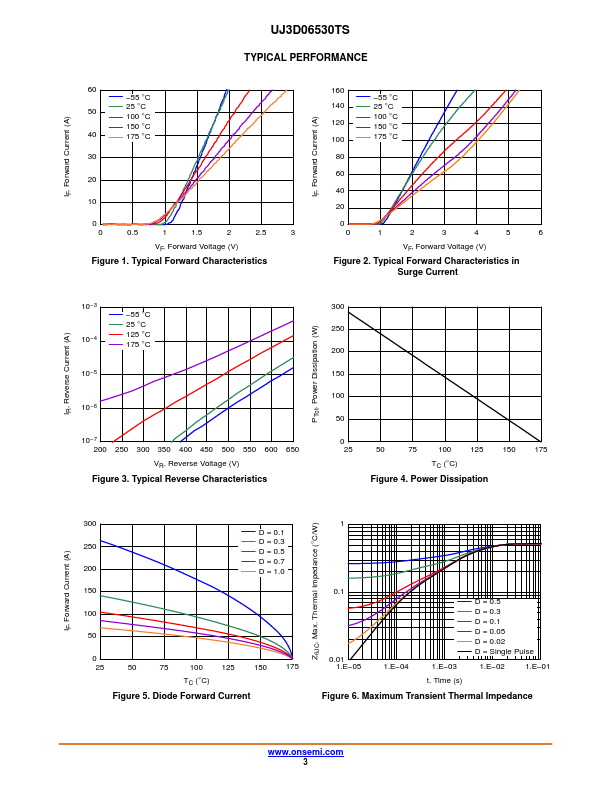

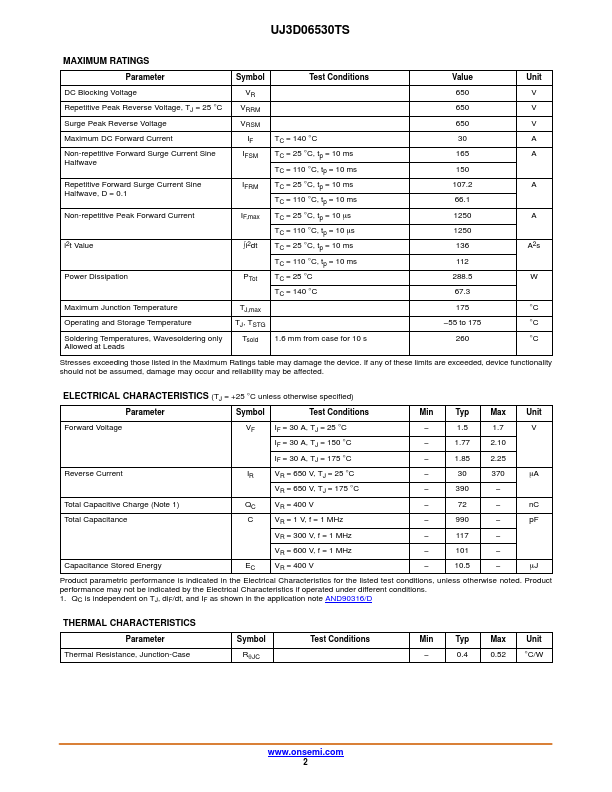

Additional preview pages of the UJ3D06530TS datasheet.

UJ3D06530TS Product details

Description

onsemi offers the 3rd generation of high performance SiC Merged-PiN-Schottky (MPS) diodes.With zero reverse recovery charge and 175 °C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling requirements.

Features

175 °C Maximum Operating Junction Temperature.
Easy Paralleling.
Extremely Fast Switching not Dependent on Temperature.
No Reverse or Forward Recovery.
Enhanced Surge Current Capability, MPS Structure.
Excellent Thermal Performance, Ag Sintered.
100% UIS Tested.
This Device is Pb-Free, Halogen Free and is ROHS Compliant Typical.
