SS14HE, SS13HE Datasheet - onsemi

SS14HE Surface Mount Schottky Barrier Rectifiers

SS14HE Features

* Very Low Profile

* Typical Height of 0.68 mm

* Low Power Loss, High Efficiency

* Moisture Sensitivity Level 1 per J

* STD

* 020

* UL Flammability 94V

* 0 Classification

* RoHS Compliant / Green Molding Compound

* NRVB Prefix

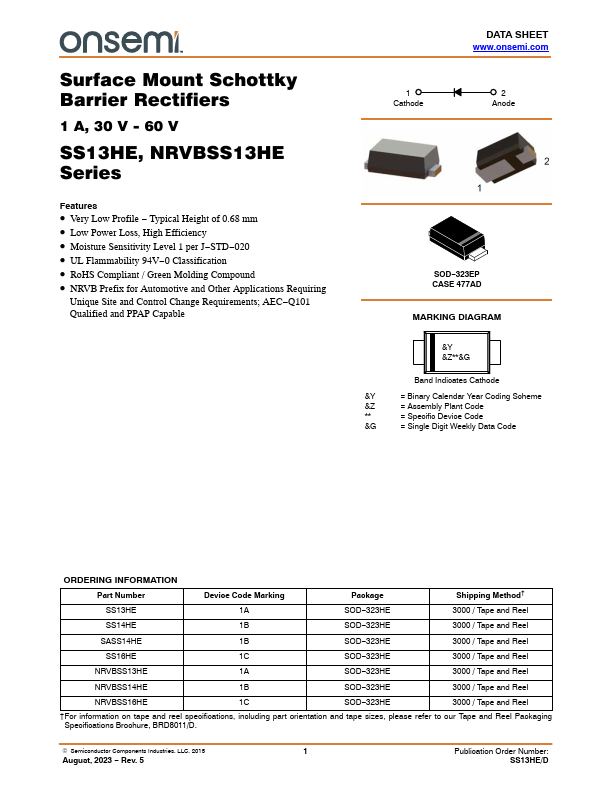

SS13HE-onsemi.pdf

This datasheet PDF includes multiple part numbers: SS14HE, SS13HE. Please refer to the document for exact specifications by model.

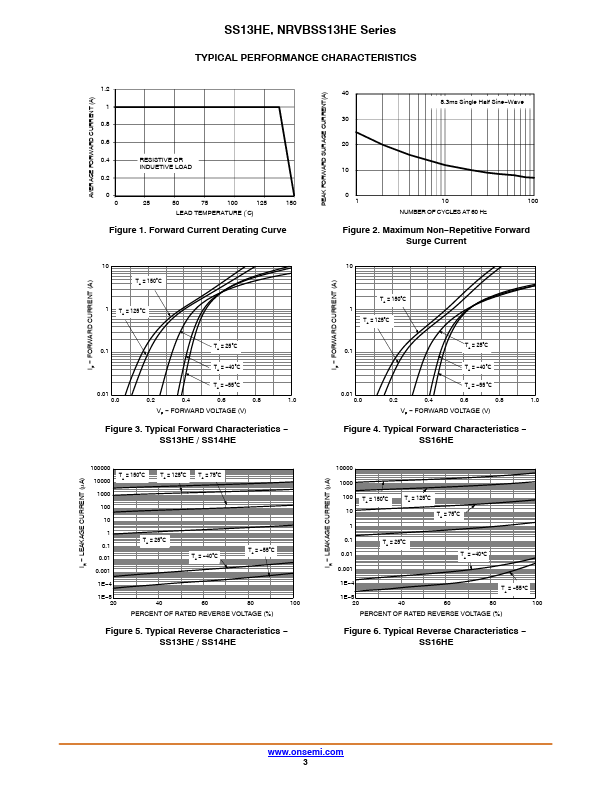

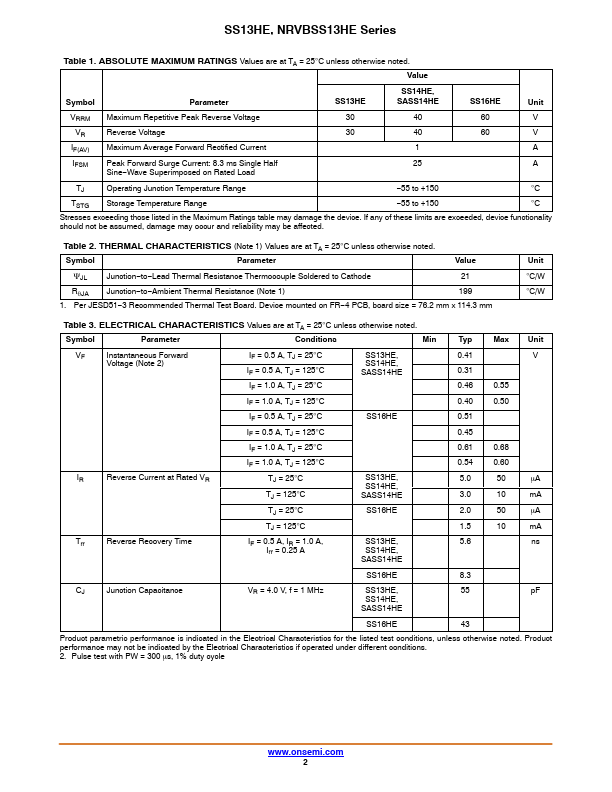

SS14HE Datasheet Preview Page 2 SS14HE Datasheet Preview Page 3

Datasheet Details

Part number:

SS14HE, SS13HE

Manufacturer:

onsemi

File Size:

173.94 KB

Description:

Surface mount schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SS14HE, SS13HE.
Please refer to the document for exact specifications by model.
