SS13HE Surface Mount Schottky Barrier Rectifiers

SS13HE Description

Surface Mount Schottky Barrier Rectifiers 1 A, 30 V - 60 V SS13HE, NRVBSS13HE Series .

SS13HE Features

* Very Low Profile
* Typical Height of 0.68 mm
* Low Power Loss, High Efficiency
* Moisture Sensitivity Level 1 per J
* STD
* 020
* UL Flammability 94V
* 0 Classification
* RoHS Compliant / Green Molding Compound
* NRVB Prefix

SS13HE Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable 1 Cathode DATA SHEET www. onsemi. com 2 Anode SOD
* 323EP CASE 477AD MARKING DIAGRAM &Y &Z
* &G Band Indicates Cathode &Y = Binary Calendar Year Coding Scheme &Z = Assembly Plant C

📥 Download Datasheet

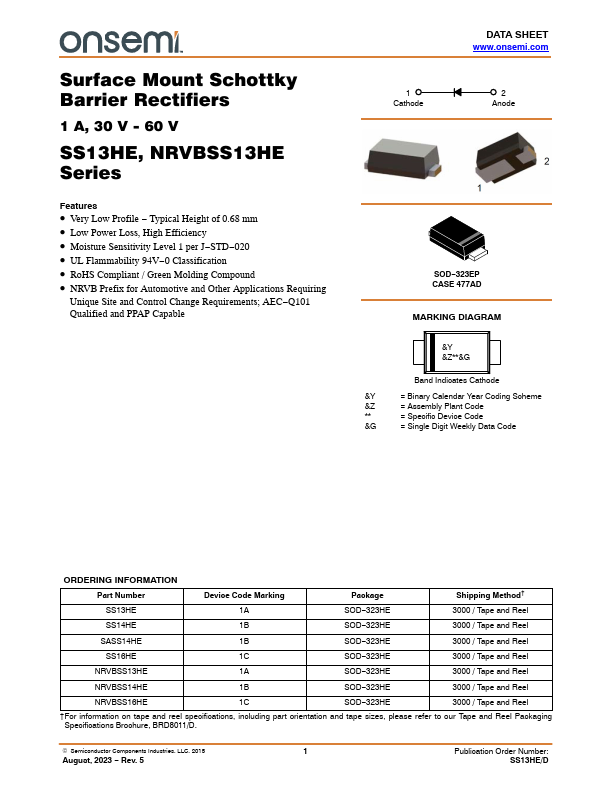

Preview of SS13HE PDF

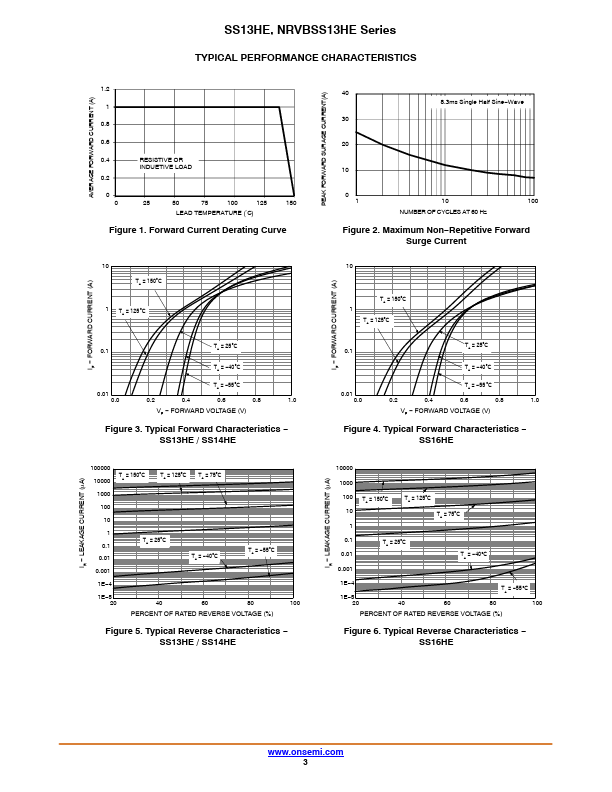

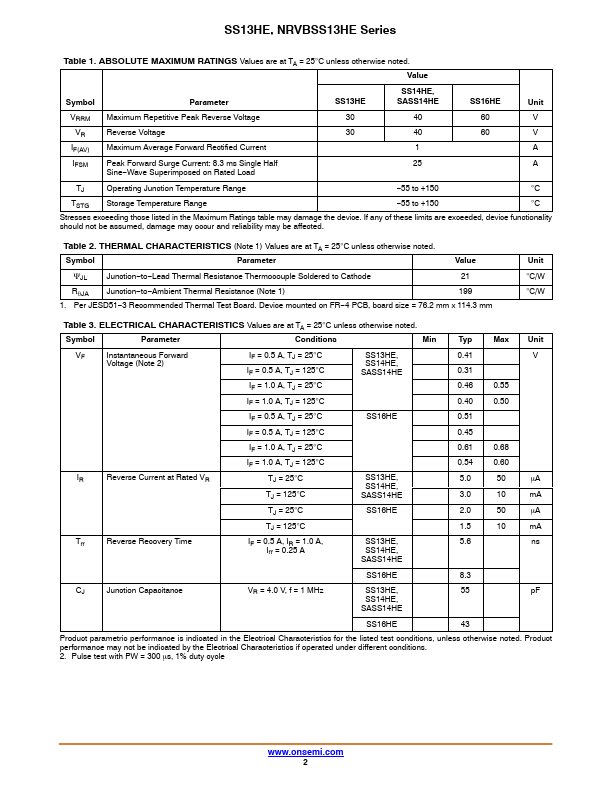

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS13HE
Manufacturer
onsemi
File Size
173.94 KB
Datasheet
SS13HE-onsemi.pdf
Description
Surface Mount Schottky Barrier Rectifiers
