PMPB13R6XN - 30V N-channel Trench MOSFET

nexperia

The PMPB13R6XN by nexperia is a 30V N-channel Trench MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

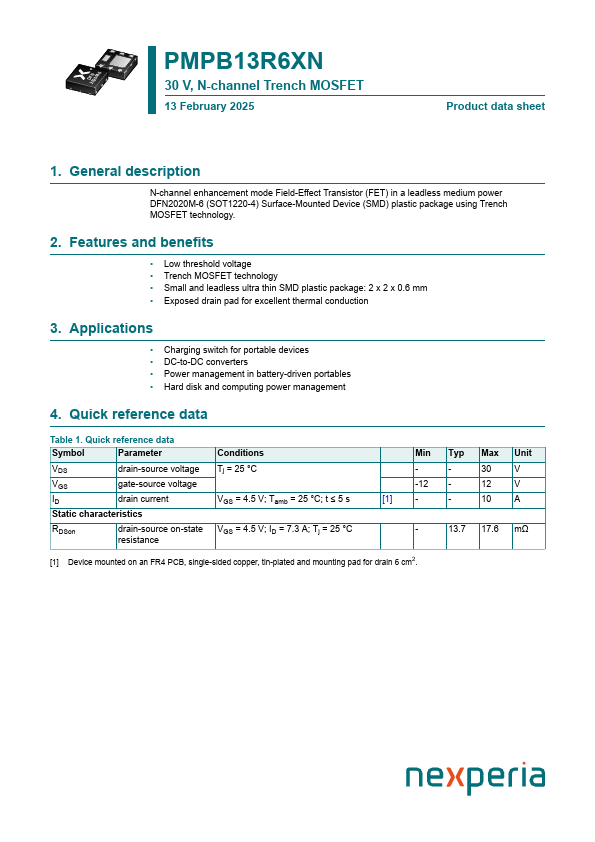

PMPB13R6XN 30V N-channel Trench MOSFET by nexperia - Datasheet Preview — Official preview page of the **PMPB13R6XN** 30V N-channel Trench MOSFET datasheet (nexperia).

Datasheet Details

Part number	PMPB13R6XN
Manufacturer	nexperia
File Size	313.58 KB
Description	30V N-channel Trench MOSFET
Datasheet	PMPB13R6XN-nexperia.pdf
Additional preview pages of the PMPB13R6XN datasheet.

PMPB13R6XN Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020M-6 (SOT1220-4) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Low threshold voltage.
Trench MOSFET technology.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.6 mm.
Exposed drain pad for excellent thermal conduction 3.
