PMBT4403 - PNP switching transistor

PMBT4403 Description

PMBT4403 PNP switching transistor 12 November 2024 Product data sheet 1.General .
PNP switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. H.

PMBT4403 Features

* High current (max. 600 mA)
* Collector-emitter voltage VCEO = 40 V

PMBT4403 Applications

* Switching and linear amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -2 V; IC = -150 mA; Tamb = 25 °C Min Typ Max Unit - - -40 V - - 100

📥 Download Datasheet

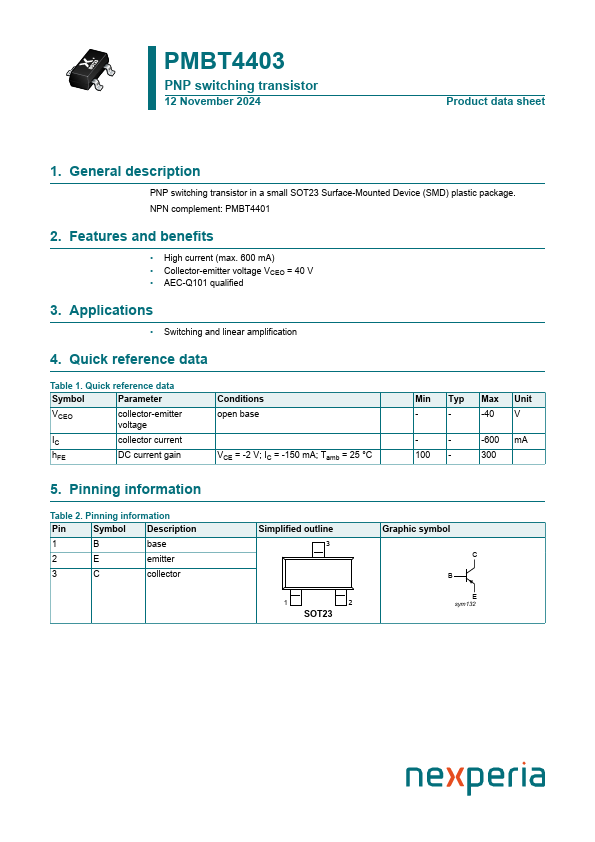

Preview of PMBT4403 PDF

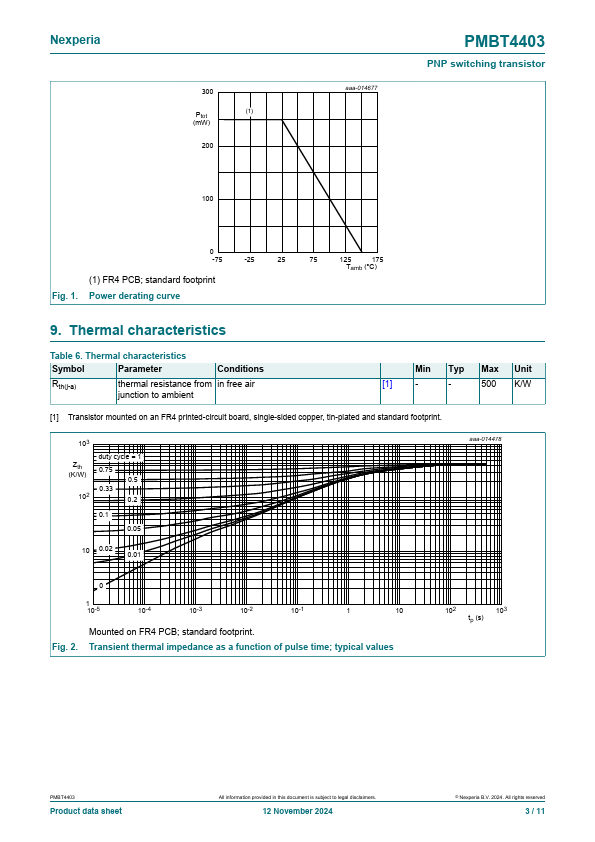

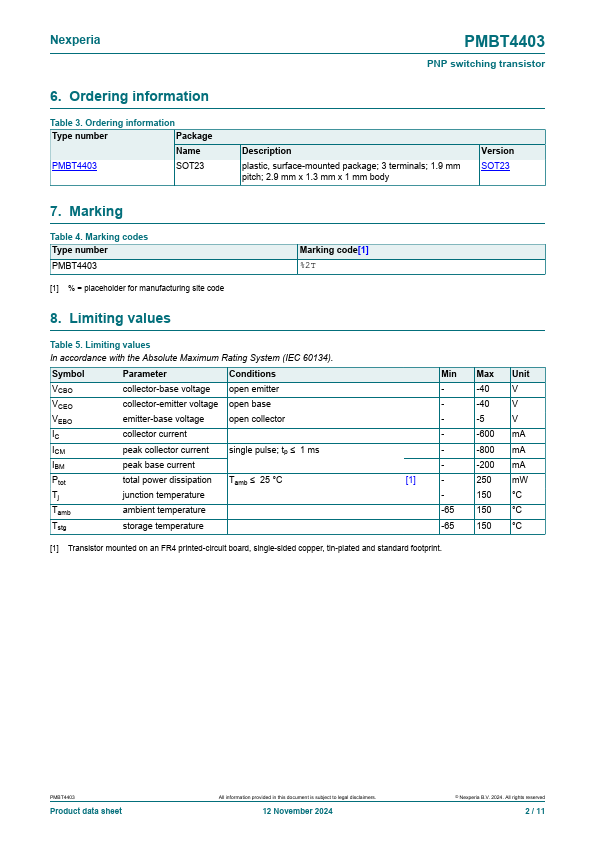

datasheet Preview Page 2 datasheet Preview Page 3
