PESD5V0L1ULD-Q - Low capacitance unidirectional ESD protection diode

Name: PESD5V0L1ULD-Q
SKU: PESD5V0L1ULD-Q-1576301

nexperia

📥 Download Datasheet

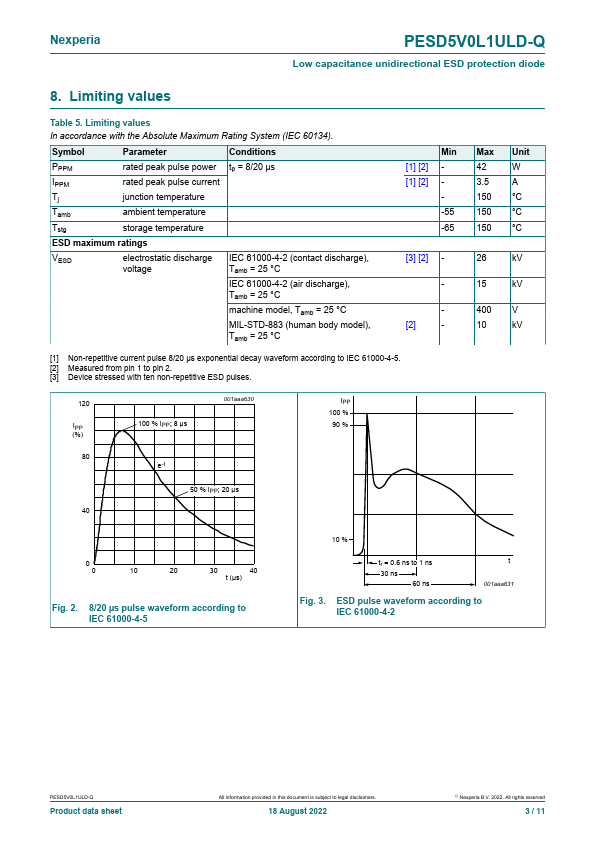

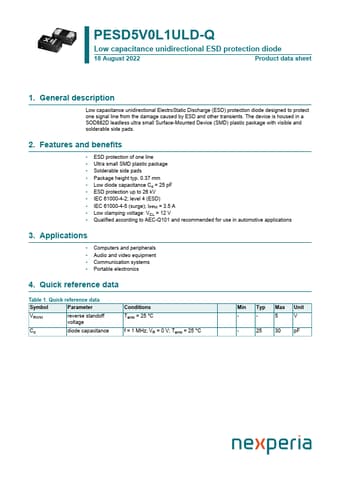

PESD5V0L1ULD-Q Datasheet Preview — Preview of PESD5V0L1ULD-Q PDF

Datasheet Details

Part number	PESD5V0L1ULD-Q
Manufacturer	nexperia
File Size	250.93 KB
Description	Low capacitance unidirectional ESD protection diode
Datasheet	PESD5V0L1ULD-Q-nexperia.pdf

PESD5V0L1ULD-Q Product details

Description

Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

Features

ESD protection of one line.
Ultra small SMD plastic package.
Solderable side pads.
Package height typ. 0.37 mm.
Low diode capacitance Cd = 25 pF.
ESD protection up to 26 kV.
IEC 61000-4-2; level 4 (ESD).
IEC 61000-4-5 (surge); IPPM = 3.5 A.
Low clamping voltage: VCL = 12 V.
Qualified according to AEC-Q101 and recommended for use in automotive.
