PESD5V0L1ULD - Low capacitance unidirectional ESD protection diode

Name: PESD5V0L1ULD
SKU: PESD5V0L1ULD-697505

NXP Semiconductors

📥 Download Datasheet

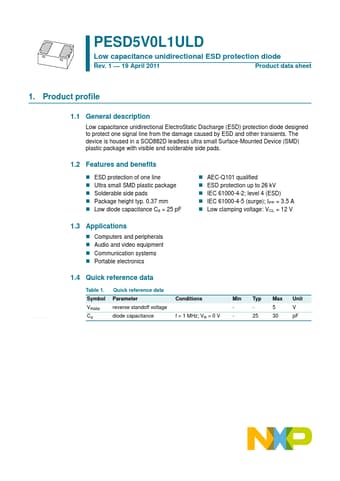

PESD5V0L1ULD Datasheet Preview — Preview of PESD5V0L1ULD PDF

Datasheet Details

Part number	PESD5V0L1ULD
Manufacturer	NXP Semiconductors
File Size	282.29 KB
Description	Low capacitance unidirectional ESD protection diode
Datasheet	PESD5V0L1ULD_NXPSemiconductors.pdf

PESD5V0L1ULD Product details

Description

Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

Features

ESD protection of one line Ultra small SMD plastic package Solderable side pads Package height typ. 0.37 mm Low diode capacitance Cd = 25 pF.
AEC-Q101 qualified ESD protection up to 26 kV IEC 61000-4-2; level 4 (ESD) IEC 61000-4-5 (surge); IPP = 3.5 A Low clamping voltage: VCL = 12 V 1.3.
