PESD2CANFD72VT-Q - ESD protection

nexperia

The PESD2CANFD72VT-Q by nexperia is a ESD protection. Below is the official datasheet preview.

📥 Download Datasheet

PESD2CANFD72VT-Q ESD protection by nexperia - Datasheet Preview — Official preview page of the **PESD2CANFD72VT-Q** ESD protection datasheet (nexperia).

Datasheet Details

Part number	PESD2CANFD72VT-Q
Manufacturer	nexperia
File Size	213.26 KB
Description	ESD protection
Datasheet	PESD2CANFD72VT-Q-nexperia.pdf

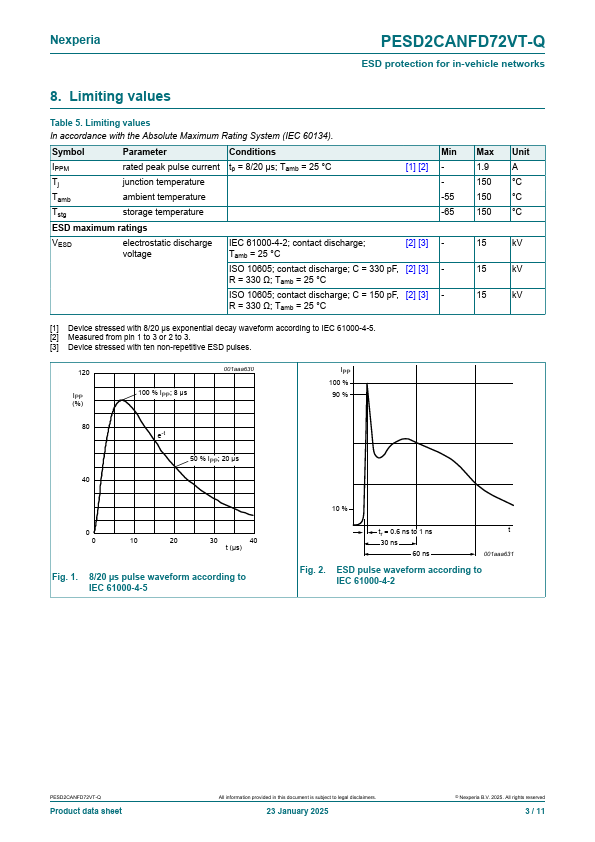

Additional preview pages of the PESD2CANFD72VT-Q datasheet.

PESD2CANFD72VT-Q Product details

Description

ESD protection device in a small SOT23 Surface-Mounted Device (SMD) plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.

Features

Reverse stand-off voltage: VRWM = 72 V.
Low capacitance: Cd = 3.4 pF.
ESD protection up to 15 kV (contact discharge; C = 150 pF, R = 330 Ω).
ISO 7637-2 pulse 3a/3b = -300 V / +300 V.
ISO 7637-2 pulse 2a = +100 V.
Qualified according to AEC-Q101 and recommended for use in automotive.
