PESD2CANFD24VU-Q - ESD protection

nexperia

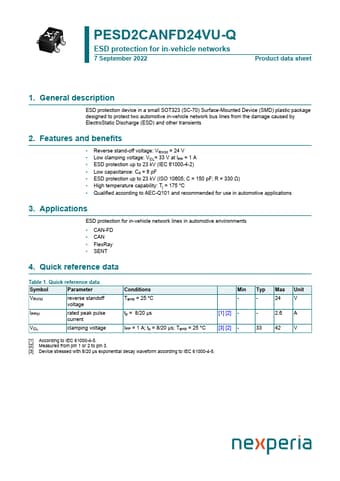

The PESD2CANFD24VU-Q by nexperia is a ESD protection. Below is the official datasheet preview.

📥 Download Datasheet

PESD2CANFD24VU-Q ESD protection by nexperia - Datasheet Preview — Official preview page of the **PESD2CANFD24VU-Q** ESD protection datasheet (nexperia).

Datasheet Details

Part number	PESD2CANFD24VU-Q
Manufacturer	nexperia
File Size	282.62 KB
Description	ESD protection
Datasheet	PESD2CANFD24VU-Q-nexperia.pdf
Additional preview pages of the PESD2CANFD24VU-Q datasheet.

PESD2CANFD24VU-Q Product details

Description

ESD protection device in a small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients 2.

Features

Reverse stand-off voltage: VRWM = 24 V.
Low clamping voltage: VCL= 33 V at IPP = 1 A.
ESD protection up to 23 kV (IEC 61000-4-2).
Low capacitance: Cd = 6 pF.
ESD protection up to 23 kV (ISO 10605; C = 150 pF; R = 330 Ω).
High temperature capability: Tj = 175 °C.
Qualified according to AEC-Q101 and recommended for use in automotive.
