PBSS4230QA-Q - 30V 2A NPN low VCEsat transistor

nexperia

📥 Download Datasheet

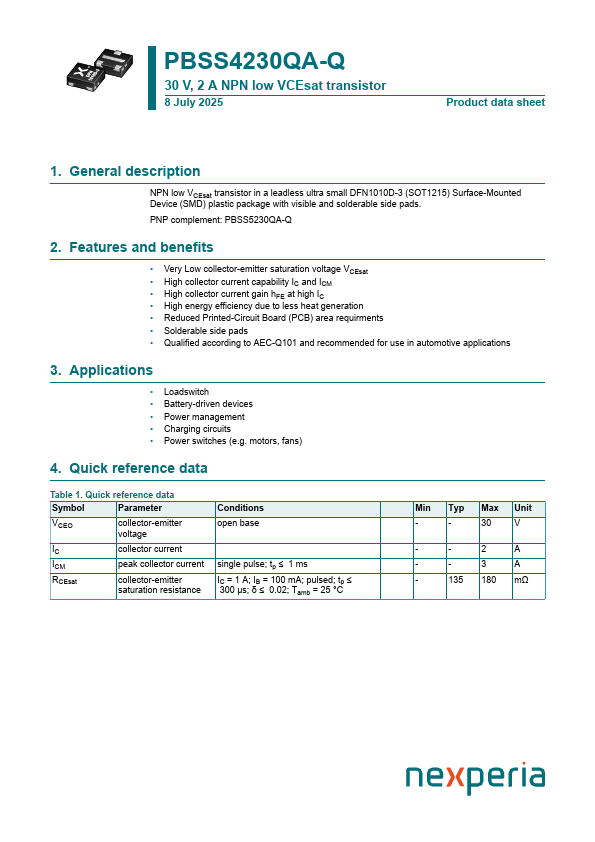

PBSS4230QA-Q Datasheet Preview — Preview of PBSS4230QA-Q PDF

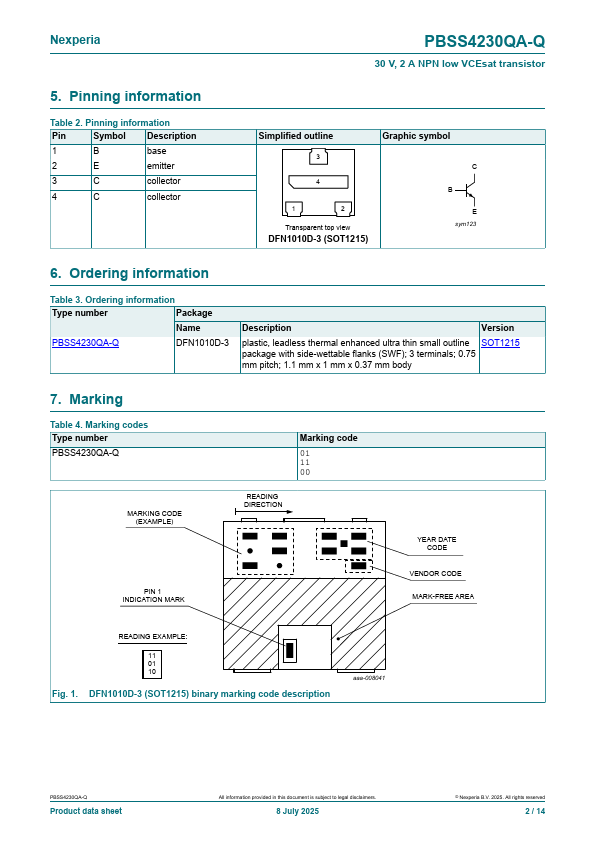

datasheet Preview Page 2

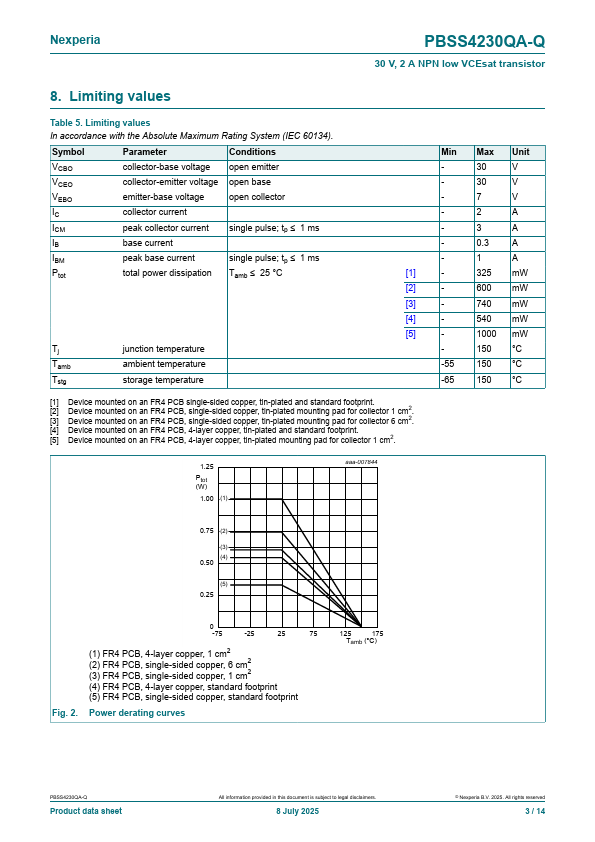

datasheet Preview Page 3

Datasheet Details

Part number	PBSS4230QA-Q
Manufacturer	nexperia ↗
File Size	278.44 KB
Description	30V 2A NPN low VCEsat transistor
Datasheet	PBSS4230QA-Q-nexperia.pdf

PBSS4230QA-Q Product details

Description

NPN low VCEsat transistor in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Features

Very Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High collector current gain hFE at high IC.
High energy efficiency due to less heat generation.
Reduced Printed-Circuit Board (PCB) area requirments.
Solderable side pads.
Qualified according to AEC-Q101 and recommended for use in automotive.
