PBHV8115TLH - NPN Transistor

Description

NPN high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High voltage.
  • Low collector-emitter saturation voltage VCEsat.
  • High collector current capability IC and ICM.
  • Small SMD plastic package.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PBHV8115T 1A NPN high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV8115Z 1A NPN high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV8118T 1 A NPN high-voltage low VCEsat(BISS) transistor NXP
PBHV8540T 0.5A NPN high-voltage low VCEsat (BISS) transistor NXP Semiconductors
PBHV8540Z 0.5A NPN high-voltage low VCEsat(BISS) transistor NXP Semiconductors

Other Datasheets by Nexperia

Part Number Description
PBHV8115T 1A NPN high-voltage low VCEsat transistor
PBHV8115T-Q 1A NPN high-voltage low VCEsat transistor
PBHV8115X NPN Transistor
PBHV8140Z NPN Transistor
PBHV8215Z NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

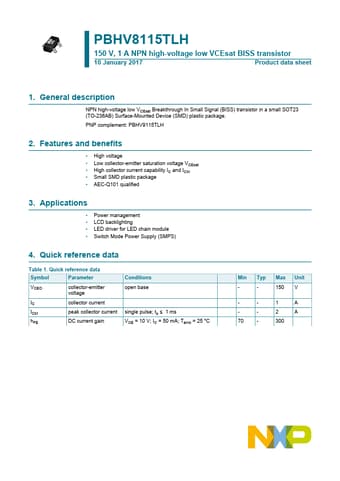

PBHV8115TLH 150 V, 1 A NPN high-voltage low VCEsat BISS transistor 10 January 2017 Product data sheet 1. General description NPN high-voltage low VCEsat Breakthrough In Small Signal (BISS) transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. PNP complement: PBHV9115TLH 2. Features and benefits • High voltage • Low collector-emitter saturation voltage VCEsat • High collector current capability IC and ICM • Small SMD plastic package • AEC-Q101 qualified 3. Applications • Power management • LCD backlighting • LED driver for LED chain module • Switch Mode Power Supply (SMPS) 4. Quick reference data Table 1.
