MMBZ27VA-T - TVS

Name: MMBZ27VA-T
SKU: MMBZ27VA-T-1514560

nexperia

The MMBZ27VA-T by nexperia is a TVS. Below is the official datasheet preview.

📥 Download Datasheet

MMBZ27VA-T TVS by nexperia - Datasheet Preview — Official preview page of the **MMBZ27VA-T** TVS datasheet (nexperia).

Datasheet Details

Part number	MMBZ27VA-T
Manufacturer	nexperia
File Size	204.61 KB
Description	TVS
Datasheet	MMBZ27VA-T-nexperia.pdf

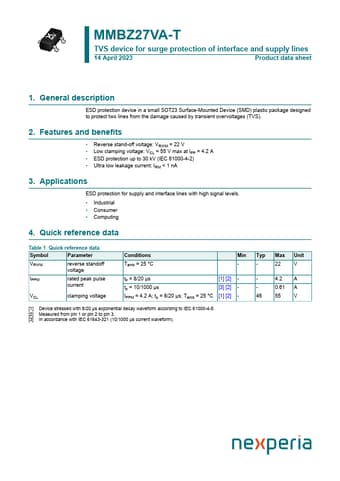

Additional preview pages of the MMBZ27VA-T datasheet.

MMBZ27VA-T Product details

Description

ESD protection device in a small SOT23 Surface-Mounted Device (SMD) plastic package designed to protect two lines from the damage caused by transient overvoltages (TVS).

Features

Reverse stand-off voltage: VRWM = 22 V.
Low clamping voltage: VCL = 55 V max at IPP = 4.2 A.
ESD protection up to 30 kV (IEC 61000-4-2).
Ultra low leakage current: IRM < 1 nA 3.
