MMBZ27VAWT1G, MMBZ15VAWT1G - Zener Diodes

Name: MMBZ27VAWT1G
SKU: MMBZ27VAWT1G-1389113

ON Semiconductor

The MMBZ27VAWT1G by ON Semiconductor is a Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	MMBZ27VAWT1G, MMBZ15VAWT1G
Manufacturer	ON Semiconductor
File Size	61.86 KB
Description	Zener Diodes
Datasheet	MMBZ15VAWT1G-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MMBZ27VAWT1G, MMBZ15VAWT1G. Please refer to the document for exact specifications by model.

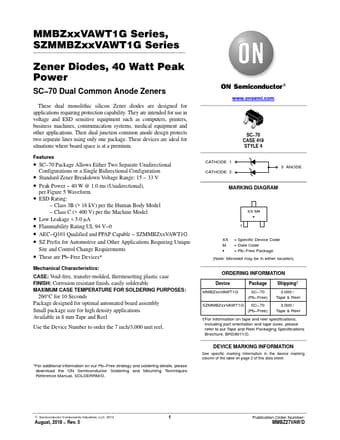

Additional preview pages of the MMBZ27VAWT1G datasheet.

SC.
70 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration.
Standard Zener Breakdown Voltage Range: 15.
33 V.
Peak Power.
40 W @ 1.0 ms (Unidirectional), per Figure 5 Waveform.
ESD Rating:.
Class 3B (> 16 kV) per the Human Body Model.
Class C (> 400 V) per the Machine Model.
Low Leakage < 5.0 mA.
Flammability Rating UL 94 V.
AEC.
