ES1J - 600V 1A hyperfast recovery rectifier

Product Overview

nexperia

📥 Download Datasheet

ES1J 600V 1A hyperfast recovery rectifier by nexperia - Datasheet Preview — Datasheet preview – ES1J

Datasheet Details

Part number	ES1J
Manufacturer	nexperia
File Size	251.18 KB
Description	600V 1A hyperfast recovery rectifier
Datasheet	ES1J Datasheet

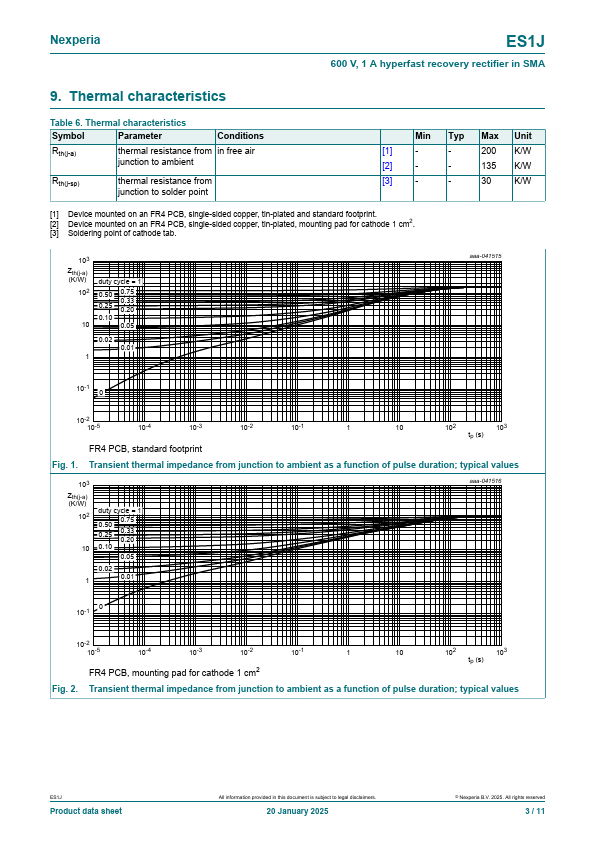

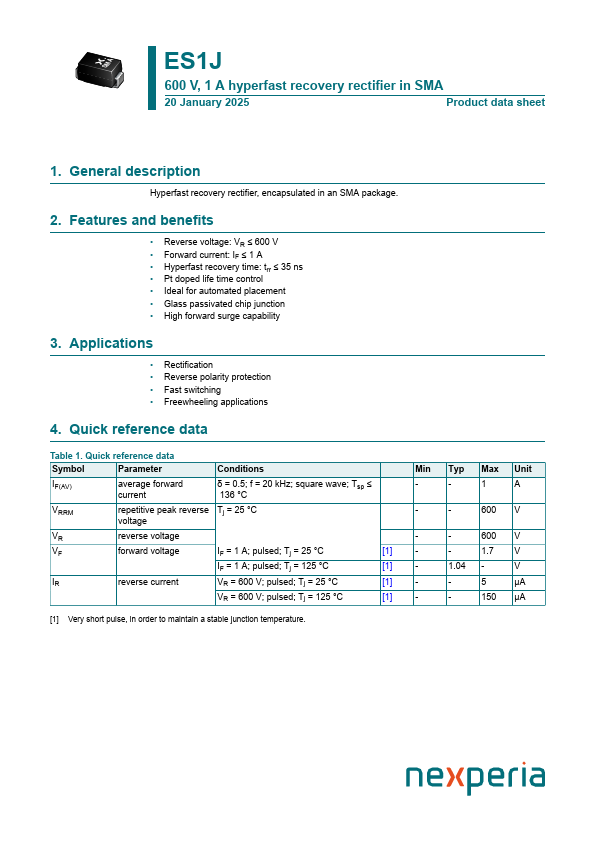

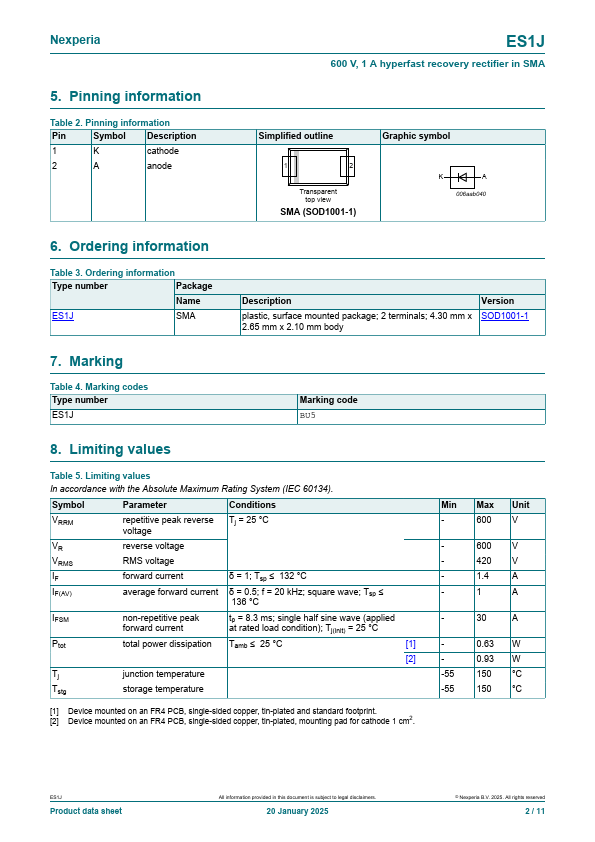

Additional preview pages of the ES1J datasheet.

Product details

Description

Hyperfast recovery rectifier, encapsulated in an SMA package.

Features

Reverse voltage: VR ≤ 600 V.
Forward current: IF ≤ 1 A.
Hyperfast recovery time: trr ≤ 35 ns.
Pt doped life time control.
Ideal for automated placement.
Glass passivated chip junction.
High forward surge capability 3.
