ES1B - 100V 1A hyperfast recovery rectifier

Product Overview

nexperia

📥 Download Datasheet

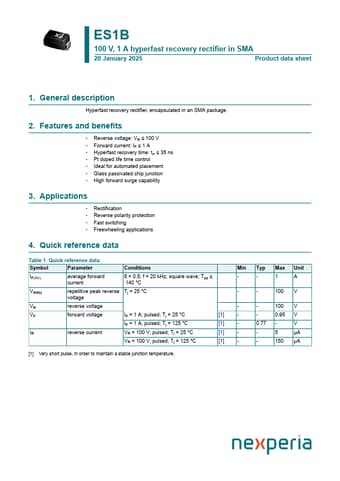

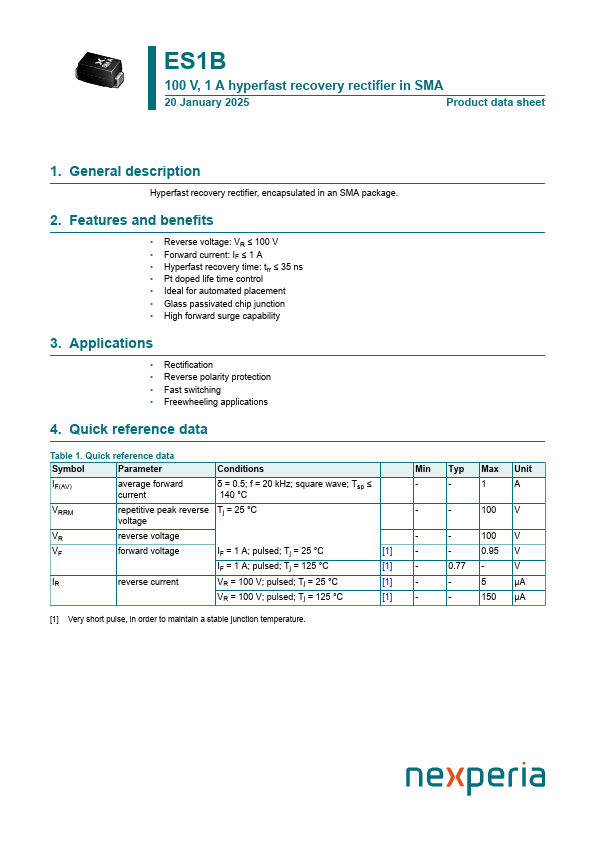

ES1B 100V 1A hyperfast recovery rectifier by nexperia - Datasheet Preview — Datasheet preview – ES1B

Datasheet Details

Part number	ES1B
Manufacturer	nexperia
File Size	247.72 KB
Description	100V 1A hyperfast recovery rectifier
Datasheet	ES1B Datasheet

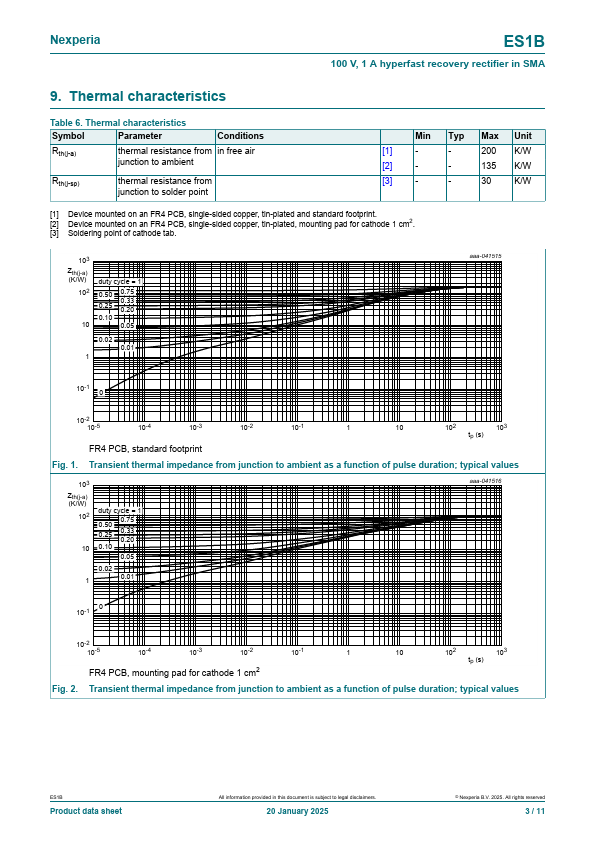

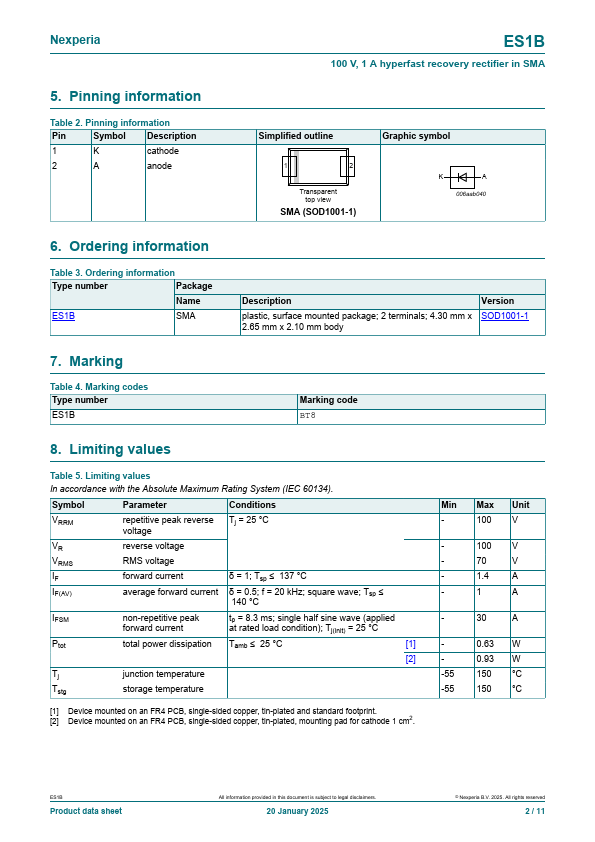

Additional preview pages of the ES1B datasheet.

Product details

Description

Hyperfast recovery rectifier, encapsulated in an SMA package.

Features

Reverse voltage: VR ≤ 100 V.
Forward current: IF ≤ 1 A.
Hyperfast recovery time: trr ≤ 35 ns.
Pt doped life time control.
Ideal for automated placement.
Glass passivated chip junction.
High forward surge capability 3.
