BUK9R4R5-40H - Logic level N-Channel MOSFET

BUK9R4R5-40H Description

BUK9R4R5-40H MLPAK56 Logic level N-Channel MOSFET in MLPAK56-WF (SOT8038-2) 10 April 2025 Product data sheet 1.General .
Logic level N-Channel MOSFET in a small MLPAK56-WF (SOT8038-2) package, using Trench 9 technology.

BUK9R4R5-40H Features

* Trench 9 technology
* Low RDS(on) to minimize conduction losses
* Small footprint (5 x 6 mm) for compact design
* Qualified to AEC-Q101 at 175 °C

BUK9R4R5-40H Applications

* Motor drive
* Battery protection
* DC-DC conversion 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit VDS drain-source voltage ID drain current Ptot total power dissipation Tj junction temperature Static charac

📥 Download Datasheet

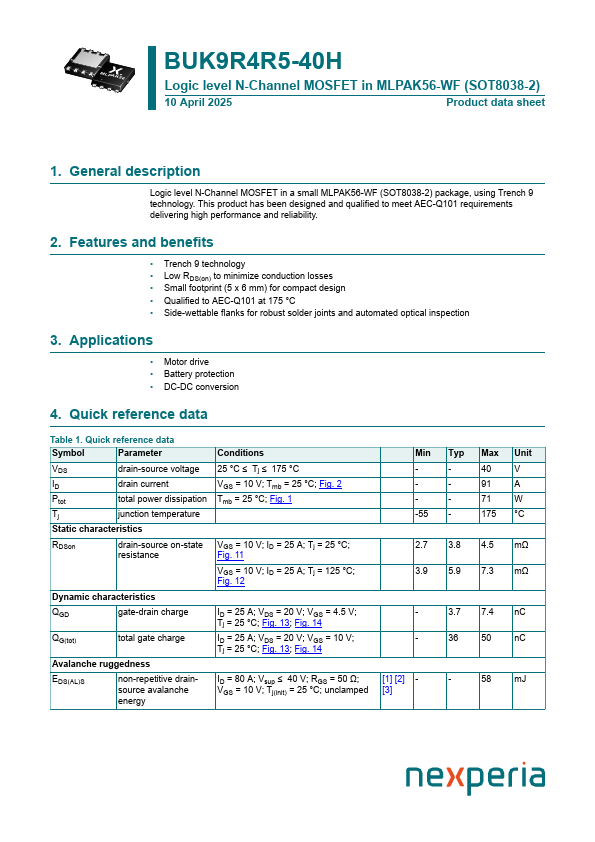

Preview of BUK9R4R5-40H PDF

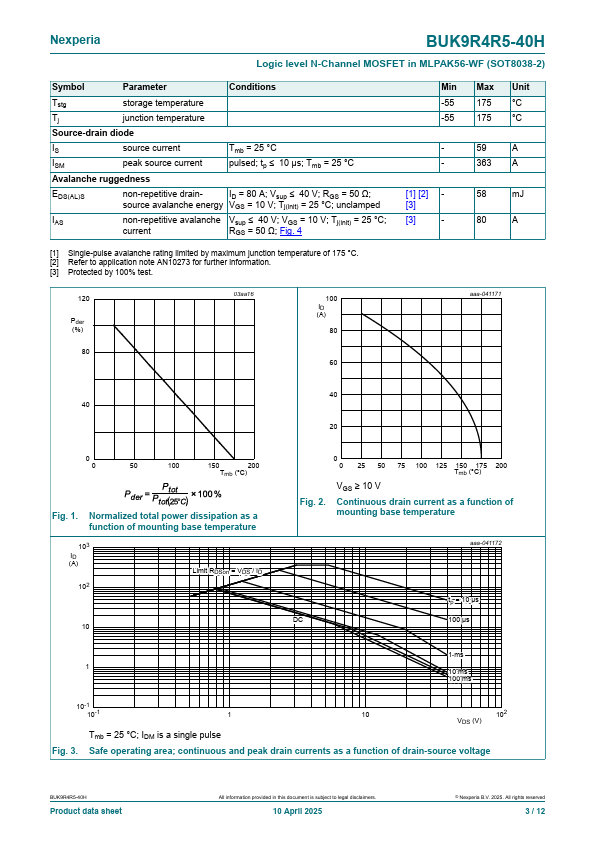

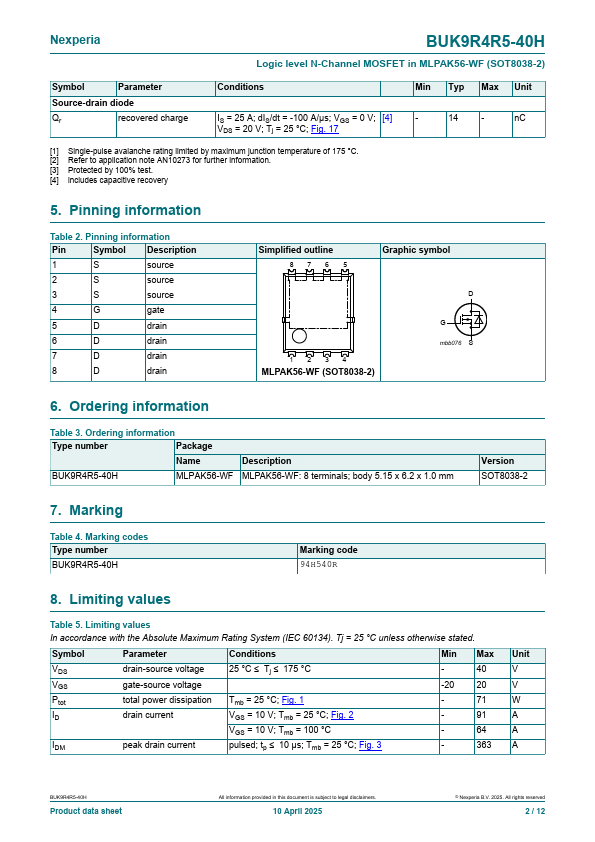

datasheet Preview Page 2 datasheet Preview Page 3
