BUK9Q7R0-40H - Logic level N-Channel MOSFET

BUK9Q7R0-40H Description

BUK9Q7R0-40H Logic level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) 7 May 2025 Product data sheet 1.General .
Logic level N-Channel MOSFET in a small MLPAK33-WF (SOT8002-3D) package using Trench 9 technology.

BUK9Q7R0-40H Features

* Trench 9 technology
* Small footprint (3 x 3 mm) for compact design
* Qualified to AEC-Q101 at 175 °C

BUK9Q7R0-40H Applications

* Motor drive
* Battery protection
* DC-DC conversion 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage ID drain current Ptot total power dissipation Static characteristics RDSon drain-source on-state resistance Dyna

📥 Download Datasheet

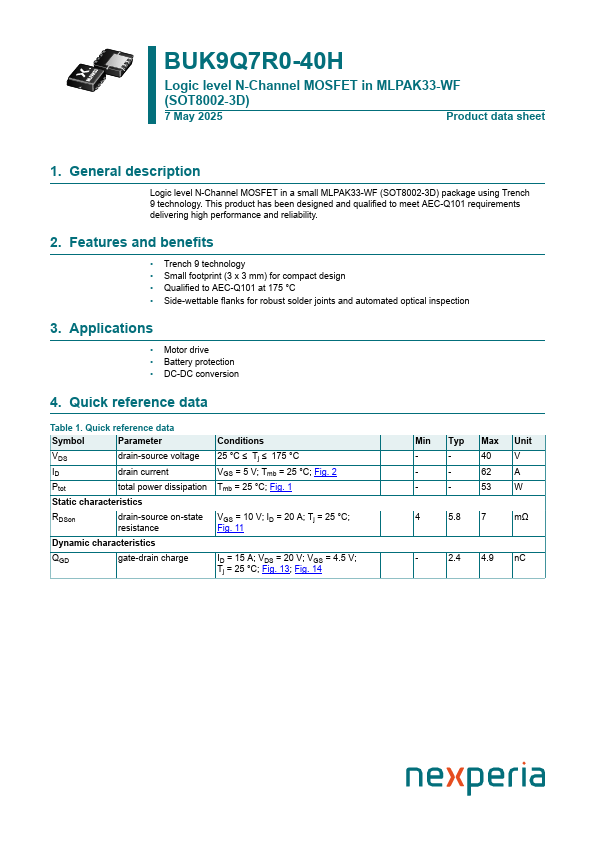

Preview of BUK9Q7R0-40H PDF

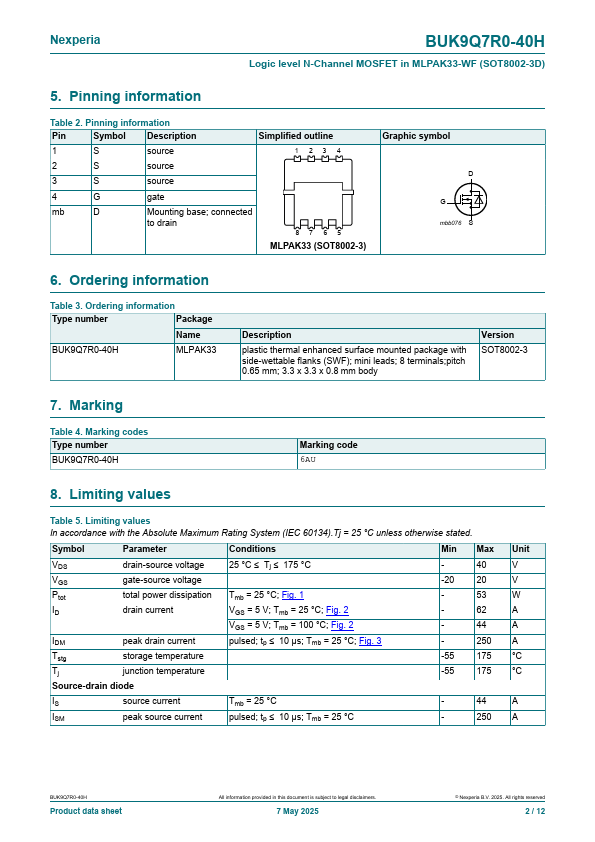

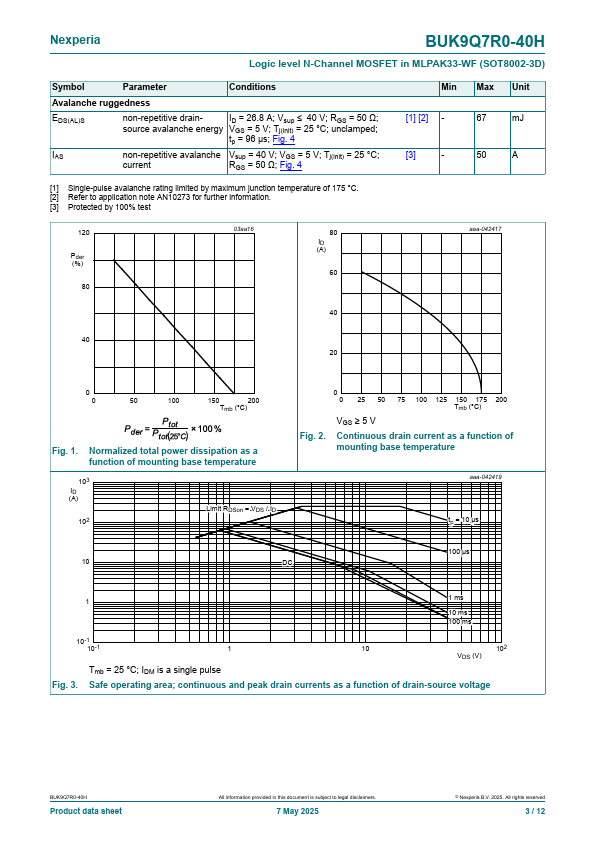

datasheet Preview Page 2 datasheet Preview Page 3
