Datasheet Details
- Part number
- BUK7J1R0-40H
- Manufacturer
- nexperia ↗
- File Size
- 319.80 KB
- Datasheet
- BUK7J1R0-40H-nexperia.pdf
- Description
- N-channel MOSFET
BUK7J1R0-40H Description

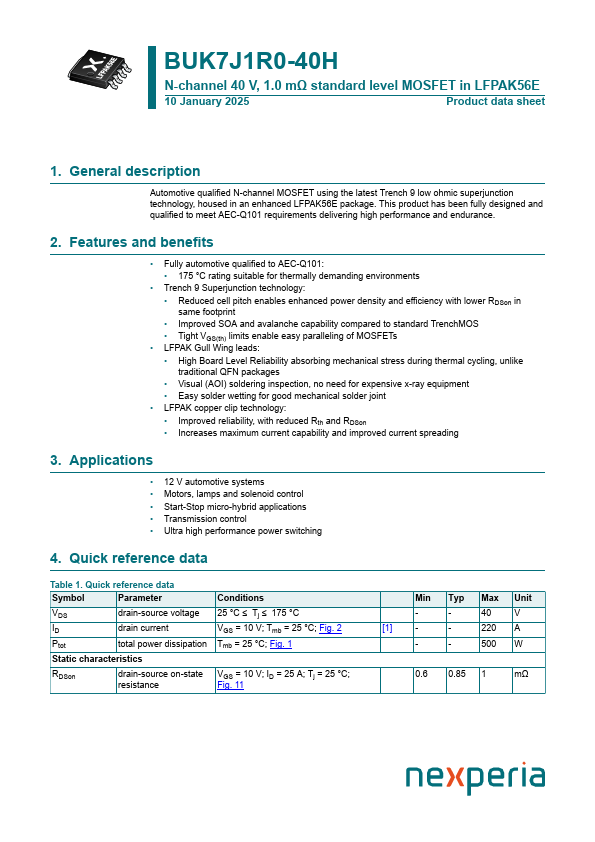

BUK7J1R0-40H N-channel 40 V, 1.0 mΩ standard level MOSFET in LFPAK56E 10 January 2025 Product data sheet 1.General .
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in an enhanced LFPAK56E package.
BUK7J1R0-40H Features
* Fully automotive qualified to AEC-Q101:
* 175 °C rating suitable for thermally demanding environments
* Trench 9 Superjunction technology:
* Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint
* Improved SOA an
BUK7J1R0-40H Applications
* 12 V automotive systems
* Motors, lamps and solenoid control
* Start-Stop micro-hybrid applications
* Transmission control
* Ultra high performance power switching
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VDS
drain-source
