BCX54-Q 1A NPN medium power transistors

BCX54-Q Description

BCX54-Q series 45 V, 1 A NPN medium power transistors Rev.2 * 30 March 2022 Product data sheet 1.General .
NPN medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. High colle.

BCX54-Q Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BCX54-Q Applications

* 3. Applications
* Linear voltage regulators
* MOSFET drivers
* Low-side switches
* Battery-driven devices
* Power management
* Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Paramete

📥 Download Datasheet

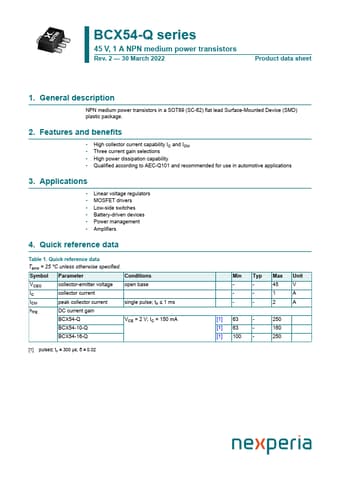

Preview of BCX54-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3
