BCX54-10-Q, BCX54-Q 1A NPN medium power transistors

BCX54-10-Q Description

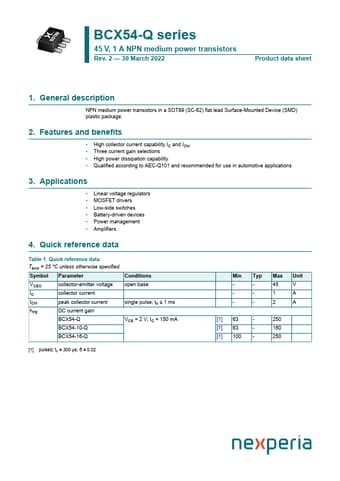

BCX54-Q series 45 V, 1 A NPN medium power transistors Rev.2 * 30 March 2022 Product data sheet 1.General .
NPN medium power transistors in a SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package. High colle.

BCX54-10-Q Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BCX54-10-Q Applications

* 3. Applications
* Linear voltage regulators
* MOSFET drivers
* Low-side switches
* Battery-driven devices
* Power management
* Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Paramete

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCX54-10-Q, BCX54-Q. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCX54-10-Q, BCX54-Q
Manufacturer
nexperia ↗
File Size
225.28 KB
Datasheet
BCX54-Q-nexperia.pdf
Description
1A NPN medium power transistors
Note
This datasheet PDF includes multiple part numbers: BCX54-10-Q, BCX54-Q.
Please refer to the document for exact specifications by model.
