BC848B 30V 100mA NPN general-purpose transistors

BC848B Description

BC848B 30 V, 100 mA NPN general-purpose transistor 6 May 2025 Product data sheet 1.General .
NPN general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BC848B Features

* General-purpose transistor
* SMD plastic package

BC848B Applications

* General-purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 5 V; IC = 2 mA; Tamb = 25 °C Min Typ Max Unit - - 30 V - -

📥 Download Datasheet

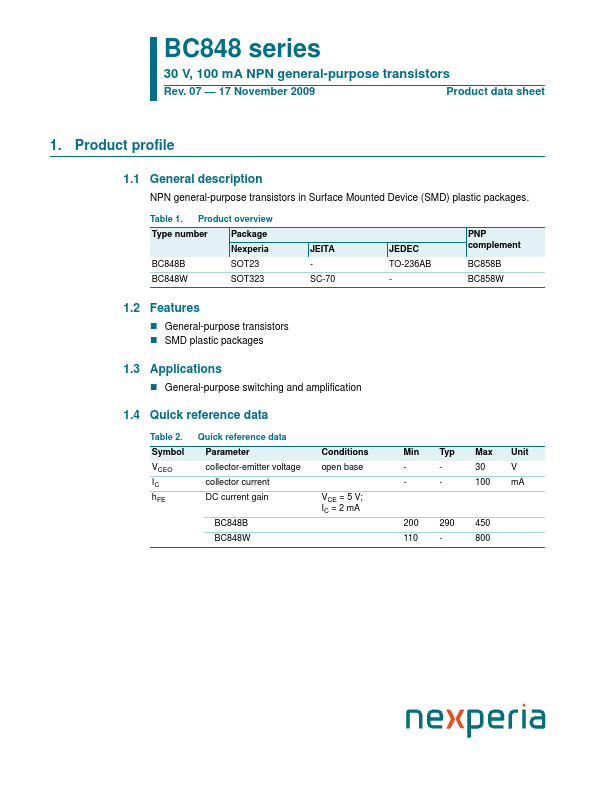

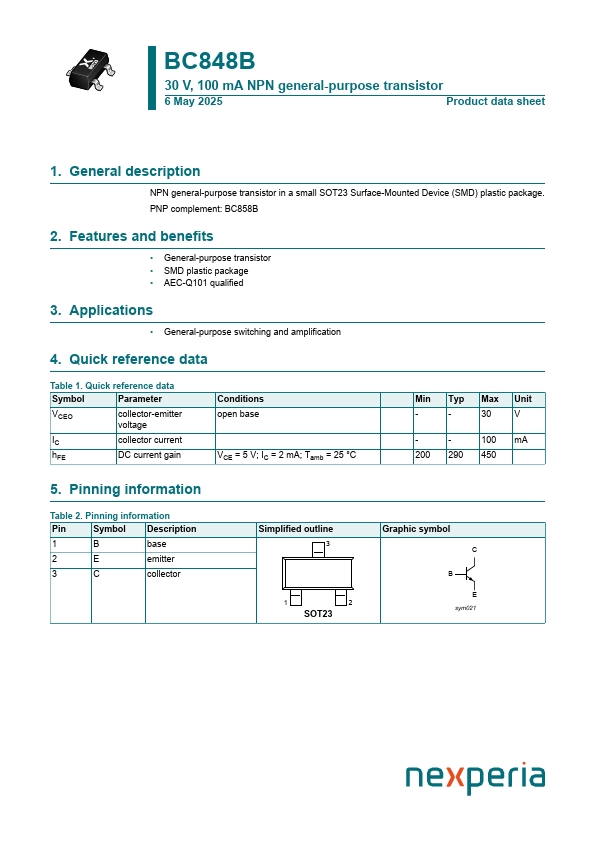

Preview of BC848B PDF

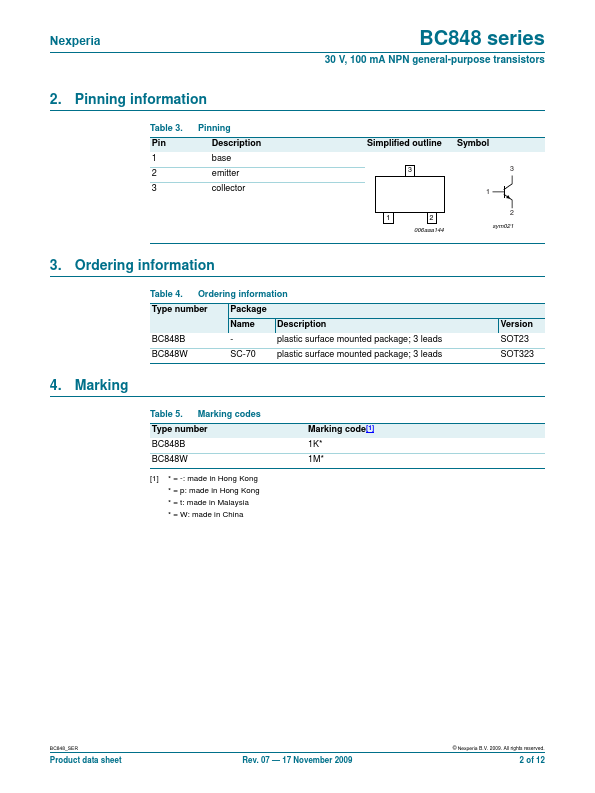

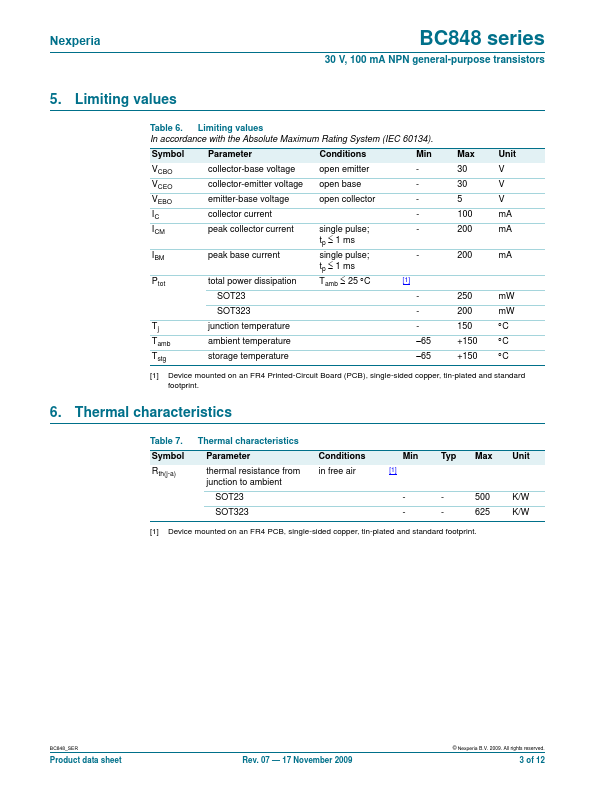

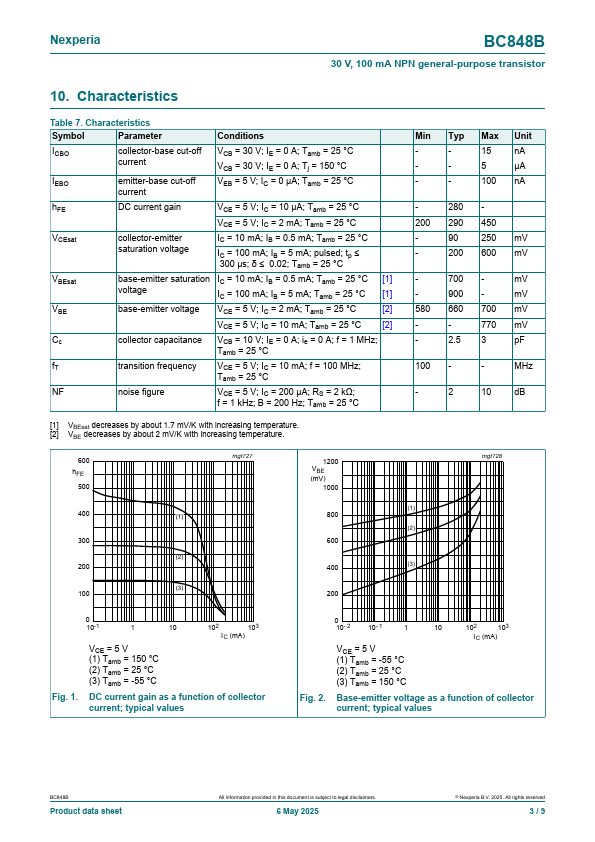

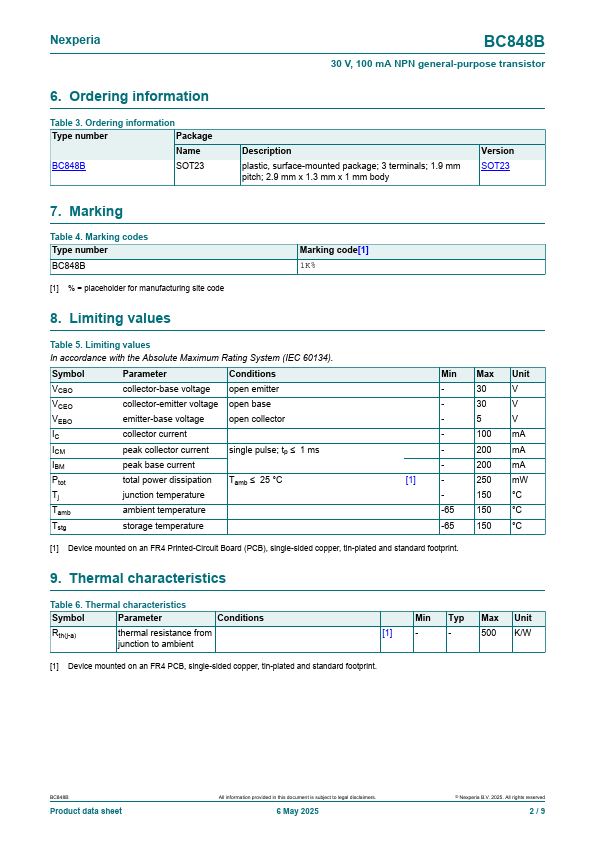

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC848B
Manufacturer
nexperia ↗
File Size
191.29 KB
Datasheet
BC848B-nexperia.pdf
Description
30V 100mA NPN general-purpose transistors
