Description

BC846x-Q series 65 V, 100 mA NPN general-purpose transistors Rev.2 * 20 May 2022 Product data sheet 1.General .
NPN general-purpose transistors in a small SOT23 (TO236AB) Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

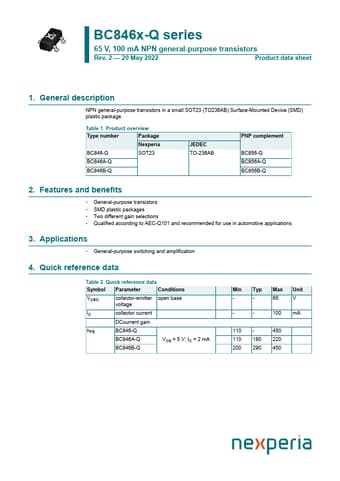

BC846B-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: BC846B-Q, BC846-Q. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BC846B-Q, BC846-Q
Manufacturer: nexperia ↗
File Size: 218.18 KB
Datasheet: BC846-Q-nexperia.pdf
Description: NPN transistors
Note: This datasheet PDF includes multiple part numbers: BC846B-Q, BC846-Q.
Please refer to the document for exact specifications by model.

Features

* General-purpose transistors
* SMD plastic packages
* Two different gain selections

Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Symbol Parameter Conditions VCEO collector-emitter open base voltage IC collector current DCcurrent gain hFE BC846-Q BC846A-Q VCE = 5 V; IC = 2 mA BC846B-Q Min
