BC846BPNH-Q 65V 100mA NPN/PNP general-purpose double transistor

BC846BPNH-Q Description

BC846BPNH-Q 65 V, 100 mA NPN/PNP general-purpose double transistor 6 May 2021 Product data sheet 1.General .
NPN/PNP general-purpose double transistor in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.

BC846BPNH-Q Features

* Low collector capacitance
* Low collector-emitter saturation voltage
* Closely matched current gain
* Reduces number of components and board space
* No mutual interference between the transistors

BC846BPNH-Q Applications

* up to 175 °C
* Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Per transistor; for the PNP transis

📥 Download Datasheet

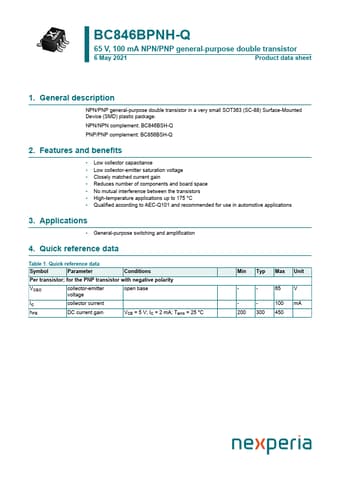

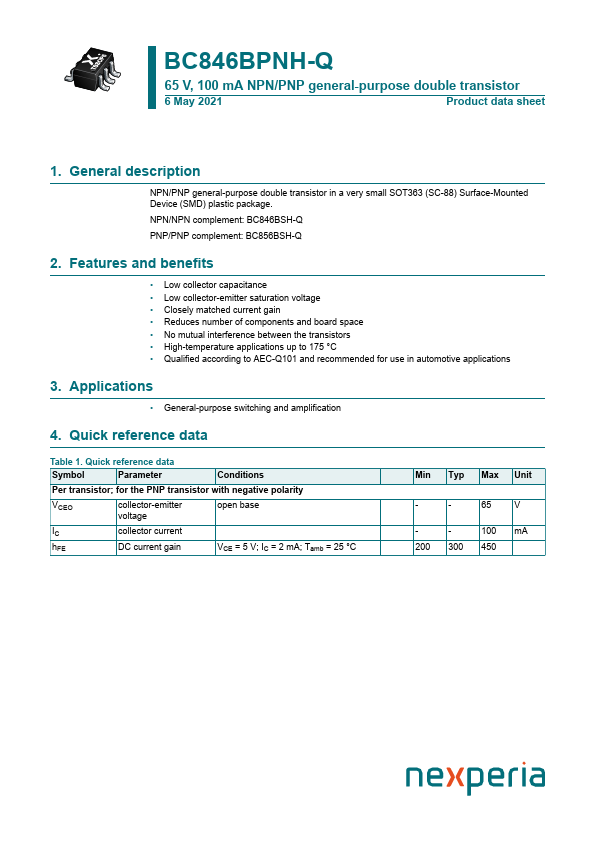

Preview of BC846BPNH-Q PDF

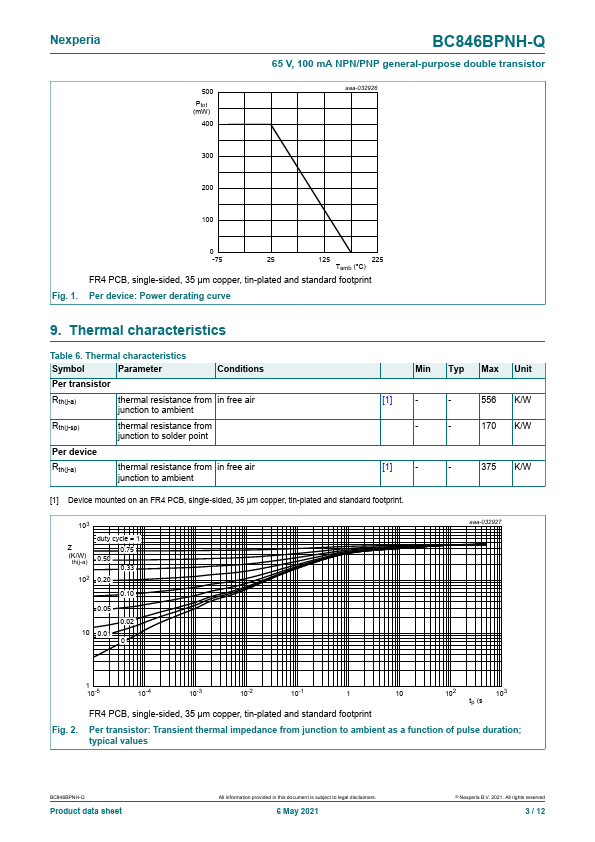

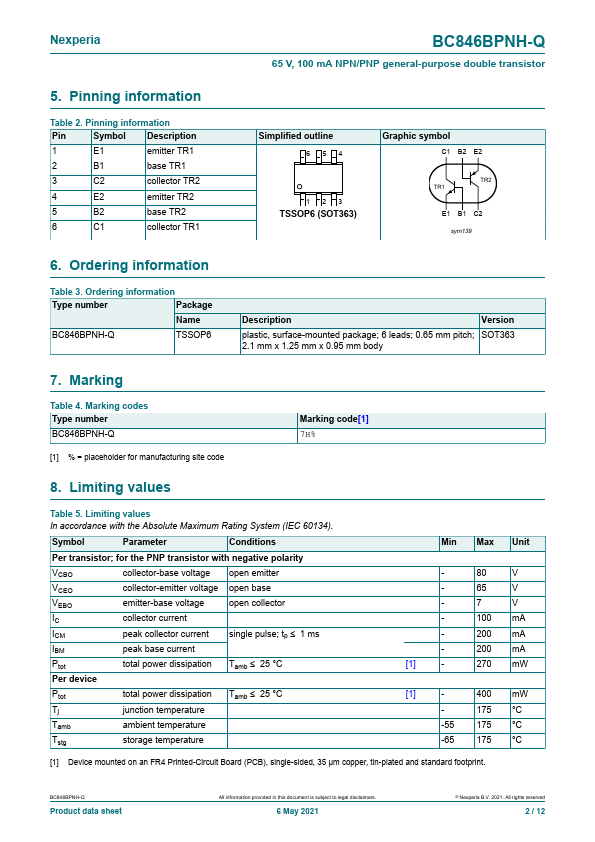

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC846BPNH-Q
Manufacturer
nexperia ↗
File Size
256.64 KB
Datasheet
BC846BPNH-Q-nexperia.pdf
Description
65V 100mA NPN/PNP general-purpose double transistor
