BC807-25QCH-Q, BC807-16QCH-Q 500mA PNP general-purpose transistors

BC807-25QCH-Q Description

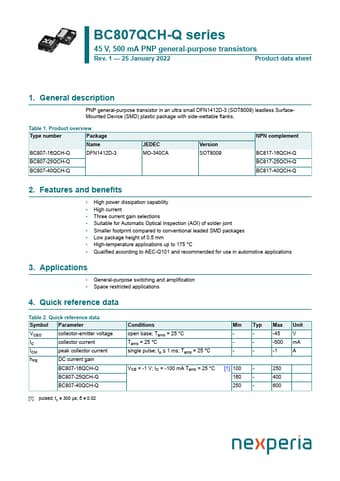

BC807QCH-Q series 45 V, 500 mA PNP general-purpose transistors Rev.1 * 25 January 2022 Product data sheet 1.General .
PNP general-purpose transistor in an ultra small DFN1412D-3 (SOT8009) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks.

BC807-25QCH-Q Features

* High power dissipation capability
* High current
* Three current gain selections
* Suitable for Automatic Optical Inspection (AOI) of solder joint
* Smaller footprint compared to conventional leaded SMD packages
* Low package height of 0.5 mm

BC807-25QCH-Q Applications

* up to 175 °C
* Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications
* General-purpose switching and amplification
* Space restricted applications 4. Quick reference data Table 2. Quick reference data Symbol Parameter VCEO col

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC807-25QCH-Q, BC807-16QCH-Q. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC807-25QCH-Q, BC807-16QCH-Q
Manufacturer
nexperia ↗
File Size
313.13 KB
Datasheet
BC807-16QCH-Q-nexperia.pdf
Description
500mA PNP general-purpose transistors
Note
This datasheet PDF includes multiple part numbers: BC807-25QCH-Q, BC807-16QCH-Q.
Please refer to the document for exact specifications by model.
