BC807-16H, BC807H 500mA PNP general-purpose transistors

BC807-16H Description

BC807H series 45 V, 500 mA PNP general-purpose transistors Rev.1 * 5 March 2019 Product data sheet 1.Product profile 1.1.General descr.
PNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

BC807-16H Features

* Three current gain selections

BC807-16H Applications

* up to 175 °C
* AEC-Q101 qualified 1.3. Applications
* General-purpose switching and amplification 1.4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO collector-emitter voltage open base IC collector

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC807-16H, BC807H. Please refer to the document for exact specifications by model.

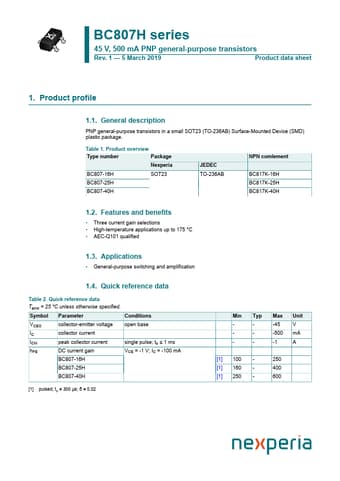

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC807-16H, BC807H
Manufacturer
nexperia ↗
File Size
355.82 KB
Datasheet
BC807H-nexperia.pdf
Description
500mA PNP general-purpose transistors
Note
This datasheet PDF includes multiple part numbers: BC807-16H, BC807H.
Please refer to the document for exact specifications by model.
