BC55PAS - 60V 1A NPN medium power transistors

Name: BC55PAS
SKU: BC55PAS-1594102

nexperia

📥 Download Datasheet

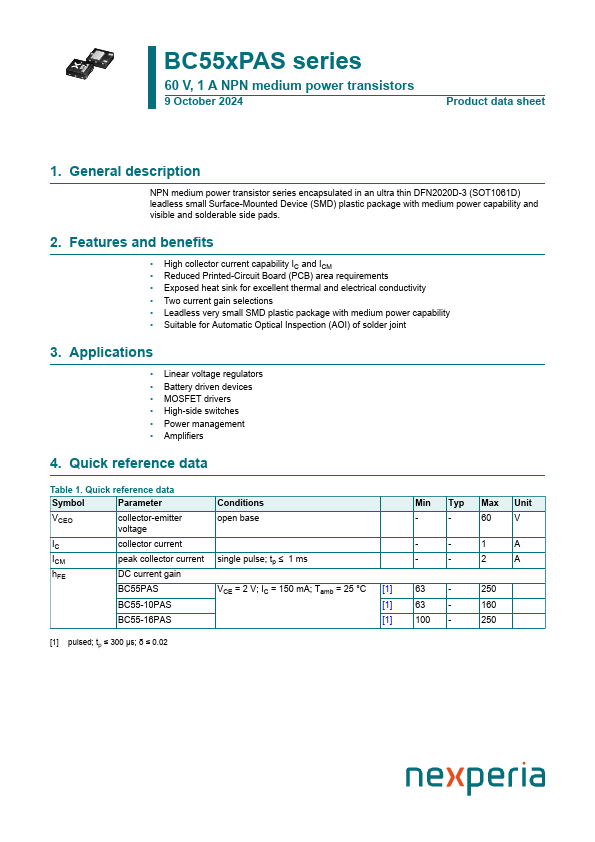

BC55PAS Datasheet Preview — Preview of BC55PAS PDF

Datasheet Details

Part number	BC55PAS
Manufacturer	nexperia
File Size	250.39 KB
Description	60V 1A NPN medium power transistors
Datasheet	BC55PAS-nexperia.pdf

BC55PAS Product details

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

Features

High collector current capability IC and ICM.
Reduced Printed-Circuit Board (PCB) area requirements.
Exposed heat sink for excellent thermal and electrical conductivity.
Two current gain selections.
Leadless very small SMD plastic package with medium power capability.
Suitable for Automatic Optical Inspection (AOI) of solder joint 3.
