BC55PA-Q, BC55PA 1A NPN medium power transistors

nexperia

Description

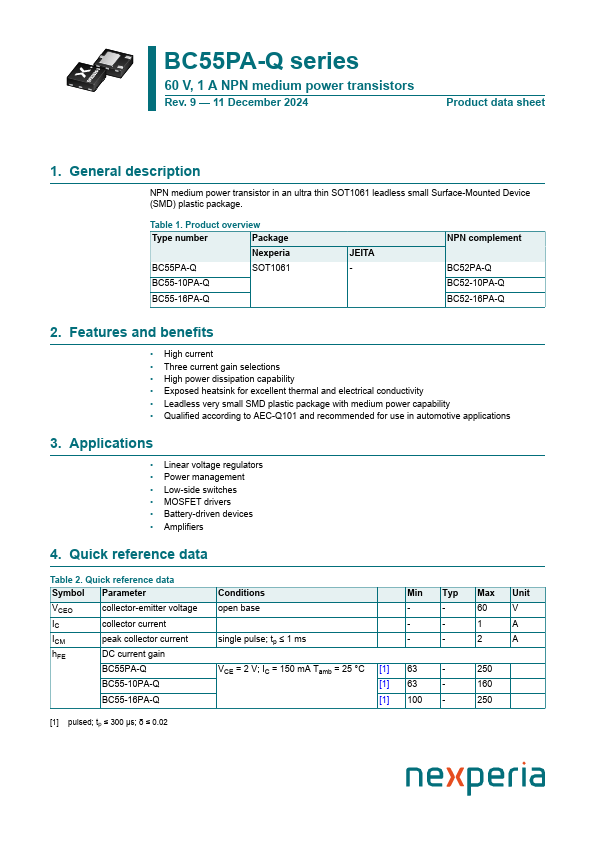

BC55PA-Q series 60 V, 1 A NPN medium power transistors Rev.9 * 11 December 2024 Product data sheet 1.General .
NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

BC55PA-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: BC55PA-Q, BC55PA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BC55PA-Q, BC55PA
Manufacturer: nexperia ↗
File Size: 246.15 KB
Datasheet: BC55PA-Qnexperia.pdf
Description: 1A NPN medium power transistors
Note: This datasheet PDF includes multiple part numbers: BC55PA-Q, BC55PA.
Please refer to the document for exact specifications by model.

Features

* High current
* Three current gain selections
* High power dissipation capability
* Exposed heatsink for excellent thermal and electrical conductivity
* Leadless very small SMD plastic package with medium power capability
* Qualified according to AEC-

Applications

* 3. Applications
* Linear voltage regulators
* Power management
* Low-side switches
* MOSFET drivers
* Battery-driven devices
* Amplifiers 4. Quick reference data Table 2. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC co
