BC54PA-Q 45V 1A NPN medium power transistors

BC54PA-Q Description

BC54PA-Q series 45 V, 1 A NPN medium power transistors Rev.1 * 2 May 2022 Product data sheet 1.General .
NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

BC54PA-Q Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BC54PA-Q Applications

* 3. Applications
* Linear voltage regulators
* MOSFET drivers
* Low-side switches
* Battery-driven devices
* Power management
* Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Paramete

📥 Download Datasheet

Preview of BC54PA-Q PDF

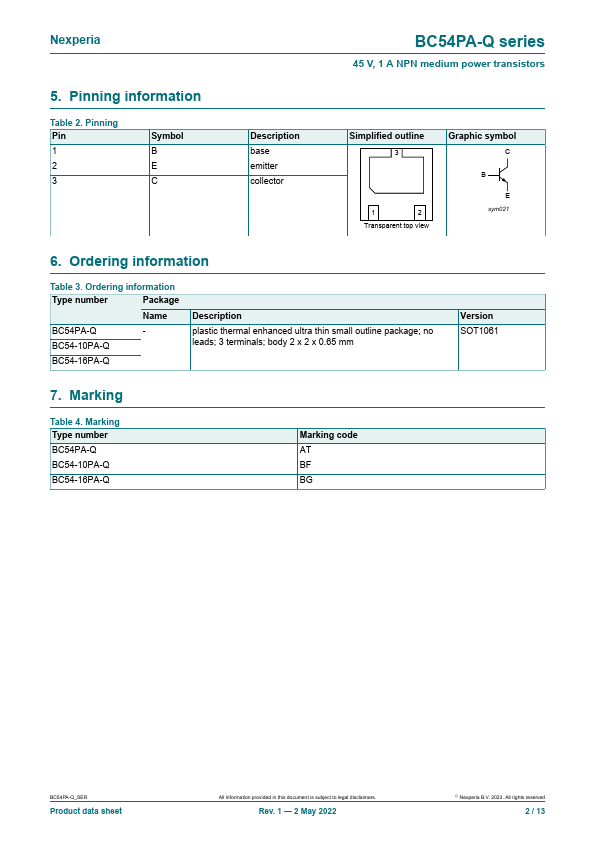

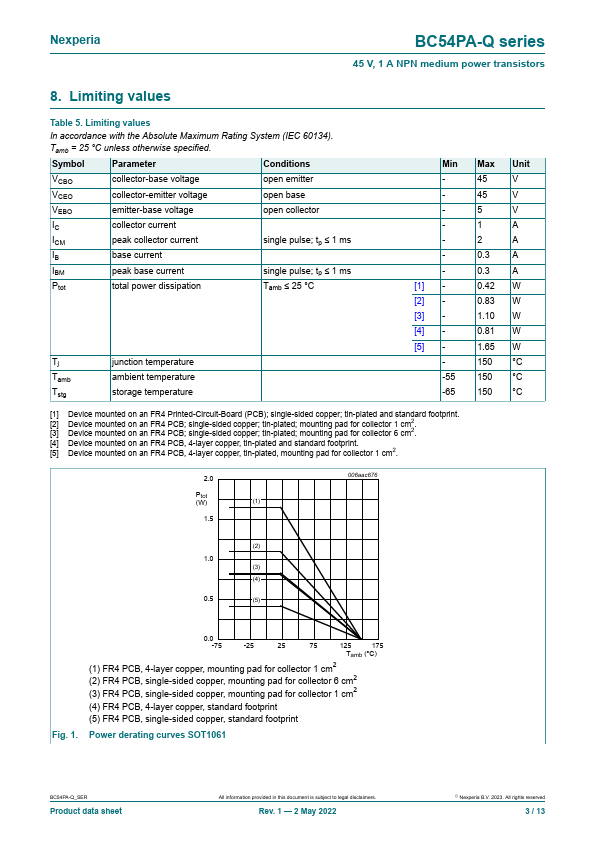

datasheet Preview Page 2 datasheet Preview Page 3
