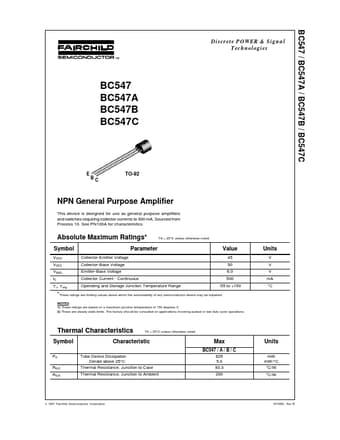

BC547 / BC547A / BC547B / BC547C
Discrete POWER & Signal Technologies
BC547 BC547A BC547B BC547C
E
B
TO-92
C
NPN General Purpose Amplifier
This device is designed for use as general purpose amplifiers and switches requiring collector currents to 300 mA. Sourced from Process 10. See PN100A for characteristics.
Absolute Maximum Ratings*
Symbol
VCEO VCES VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Value
45 50 6.0 500 -55 to +150
Units
V V V mA °C
Operating and Storage Junction Temperature Range
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
BC547A Datasheet
