BAT54HGW-Q - Schottky barrier single diode

BAT54HGW-Q Description

BAT54HGW-Q Schottky barrier single diode 25 April 2025 Product data sheet 1.General .
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOD323 Surface-Mounted Device (SMD) pl.

BAT54HGW-Q Features

* Low forward voltage
* Low capacitance

BAT54HGW-Q Applications

* 3. Applications
* Ultra high-speed switching
* Line termination
* Voltage clamping
* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VR reverse voltage VF forward voltage Conditions IF =

📥 Download Datasheet

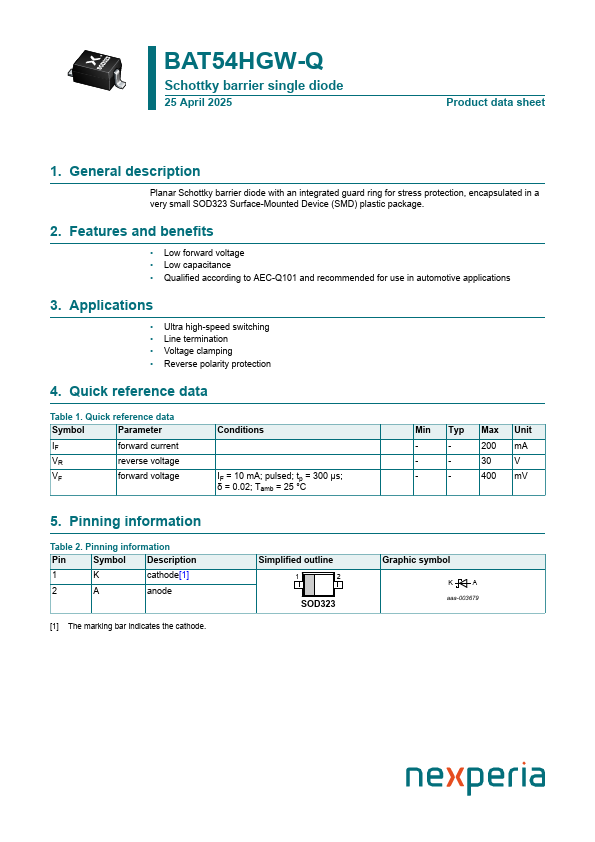

Preview of BAT54HGW-Q PDF

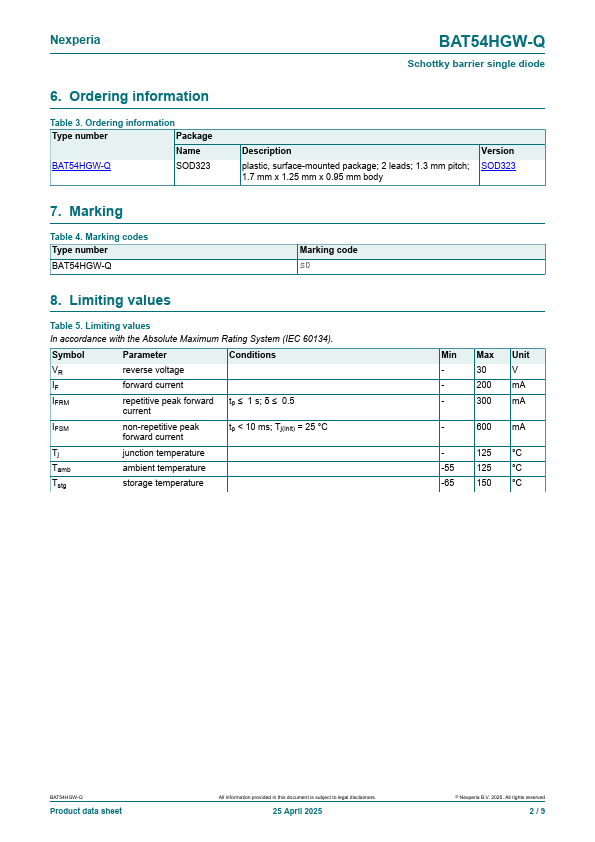

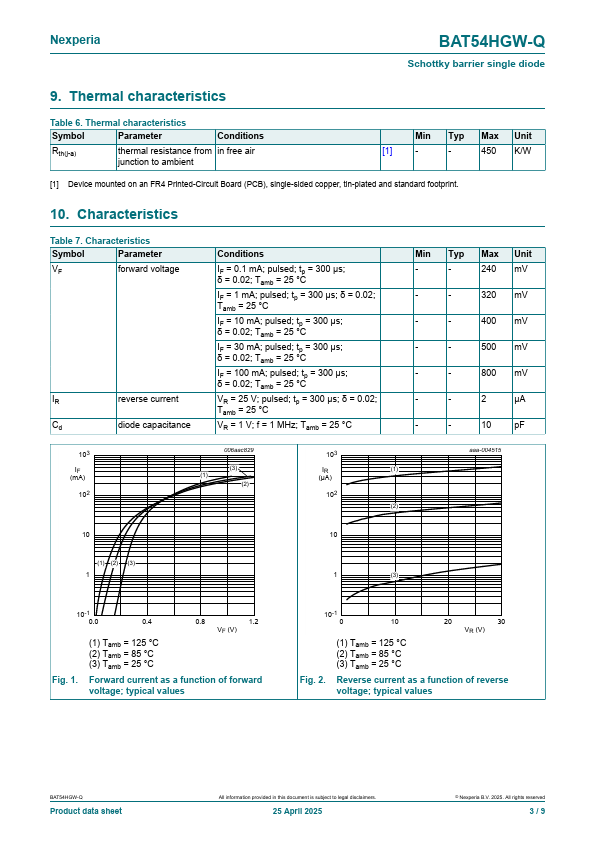

datasheet Preview Page 2 datasheet Preview Page 3
