BAT54HGW - Schottky barrier single diode

BAT54HGW Description

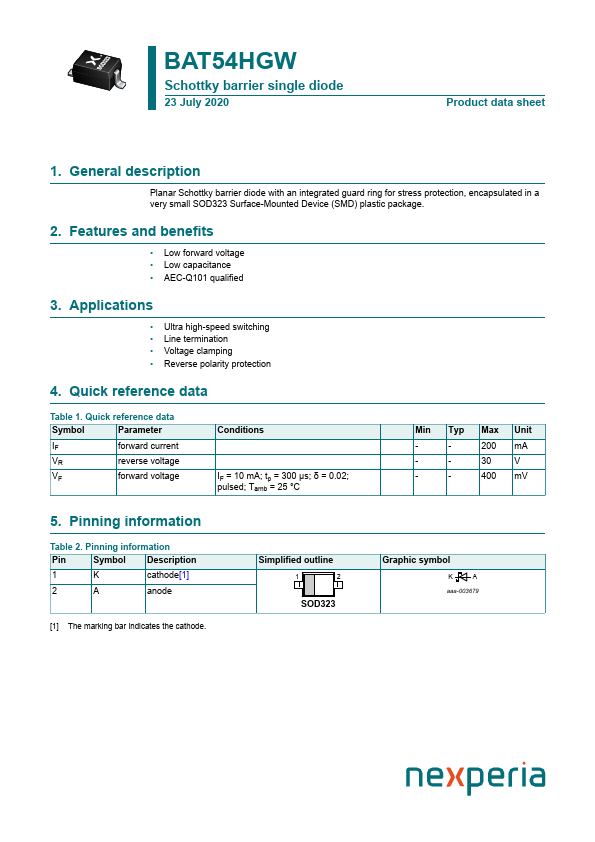

BAT54HGW Schottky barrier single diode 23 July 2020 Product data sheet 1.General .
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOD323 Surface-Mounted Device (SMD) pl.

BAT54HGW Features

* Low forward voltage
* Low capacitance

BAT54HGW Applications

* Ultra high-speed switching
* Line termination
* Voltage clamping

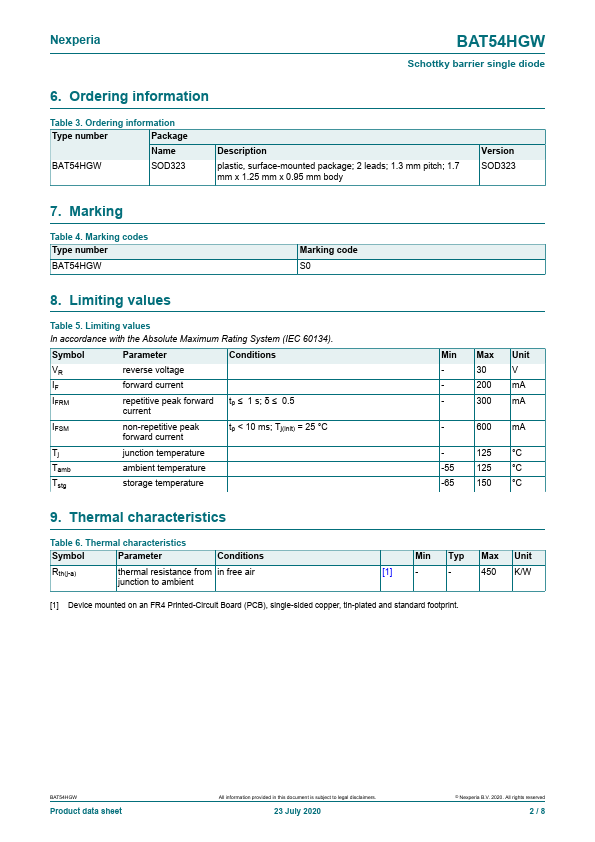

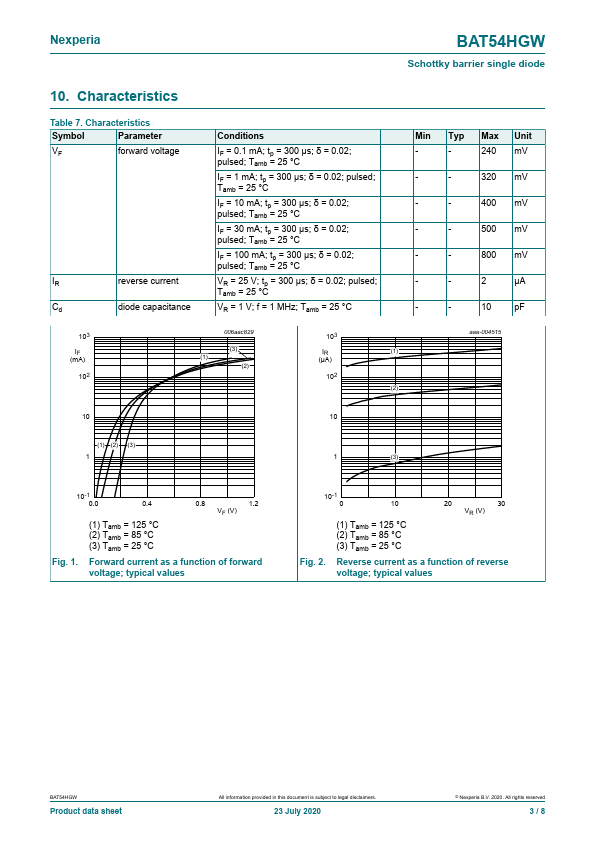

* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VR reverse voltage VF forward voltage Conditions IF = 10 mA; tp = 300
