74LVC74A-Q100 - Dual D-type flip-flop

nexperia

The 74LVC74A-Q100 by nexperia is a Dual D-type flip-flop. Below is the official datasheet preview.

📥 Download Datasheet

74LVC74A-Q100 Dual D-type flip-flop by nexperia - Datasheet Preview — Official preview page of the **74LVC74A-Q100** Dual D-type flip-flop datasheet (nexperia).

Datasheet Details

Part number	74LVC74A-Q100
Manufacturer	nexperia
File Size	262.05 KB
Description	Dual D-type flip-flop
Datasheet	74LVC74A-Q100-nexperia.pdf

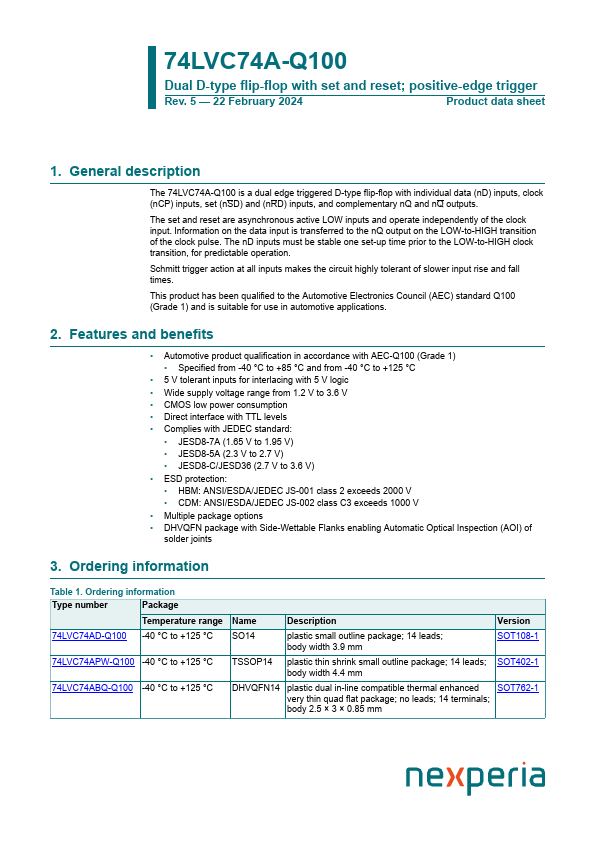

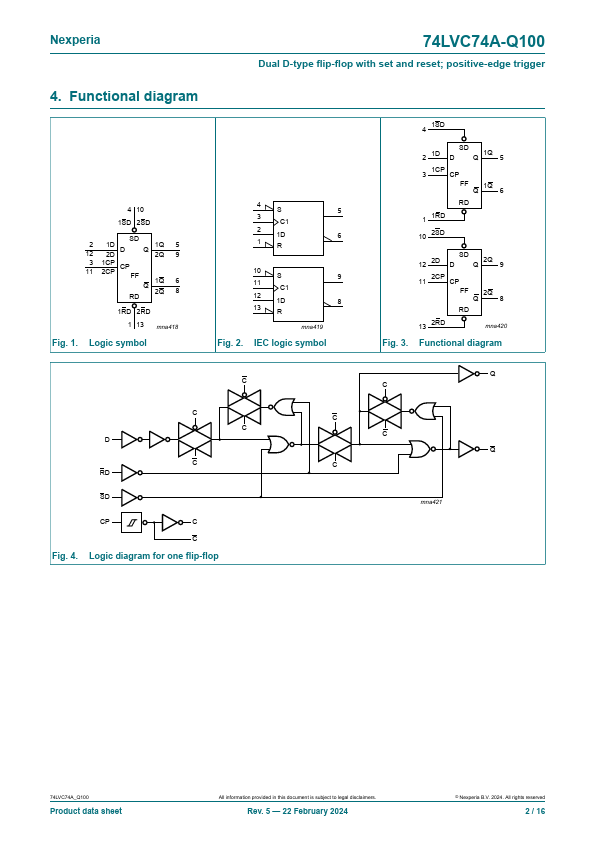

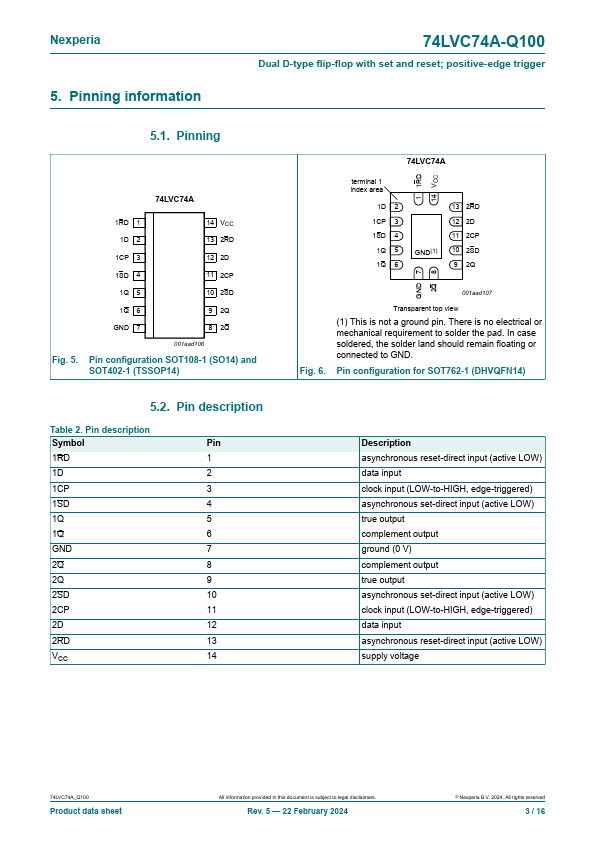

Additional preview pages of the 74LVC74A-Q100 datasheet.

74LVC74A-Q100 Product details

Description

The 74LVC74A-Q100 is a dual edge triggered D-type flip-flop with individual data (nD) inputs, clock (nCP) inputs, set (nSD) and (nRD) inputs, and complementary nQ and nQ outputs.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
5 V tolerant inputs for interlacing with 5 V logic.
Wide supply voltage range from 1.2 V to 3.6 V.
CMOS low power consumption.
Direct interface with TTL levels.
Complies with JEDEC standard:.
JESD8-7A (1.65 V to 1.95 V).
JESD8-5A (2.3 V to 2.7 V).
JESD8-C/JESD36 (2.7 V to 3.6.
