74LVC4245A - Octal dual supply translating transceiver

nexperia

The 74LVC4245A by nexperia is a Octal dual supply translating transceiver. Below is the official datasheet preview.

📥 Download Datasheet

74LVC4245A Octal dual supply translating transceiver by nexperia - Datasheet Preview — Official preview page of the 74LVC4245A Octal dual supply translating transceiver datasheet (nexperia).

Datasheet Details

Part number	74LVC4245A
Manufacturer	nexperia
File Size	285.88 KB
Description	Octal dual supply translating transceiver
Datasheet	74LVC4245A-nexperia.pdf

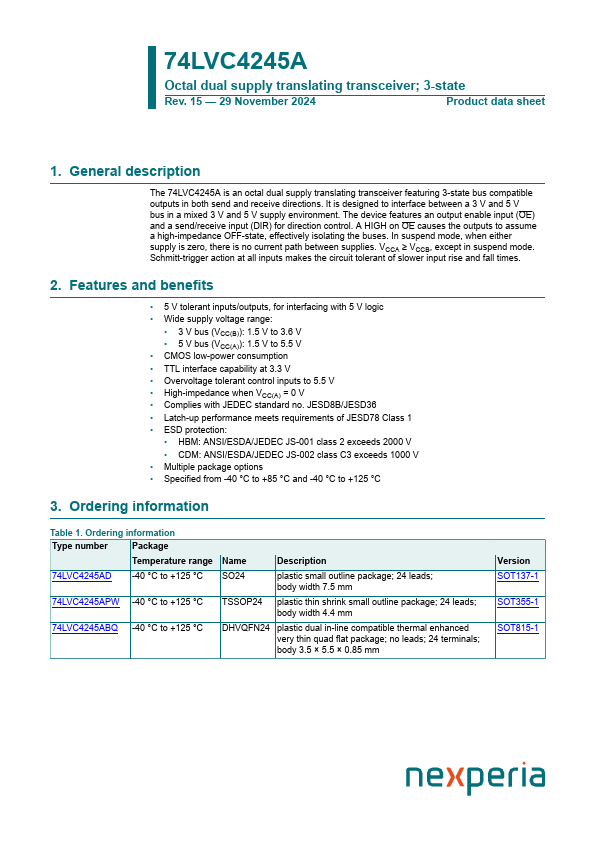

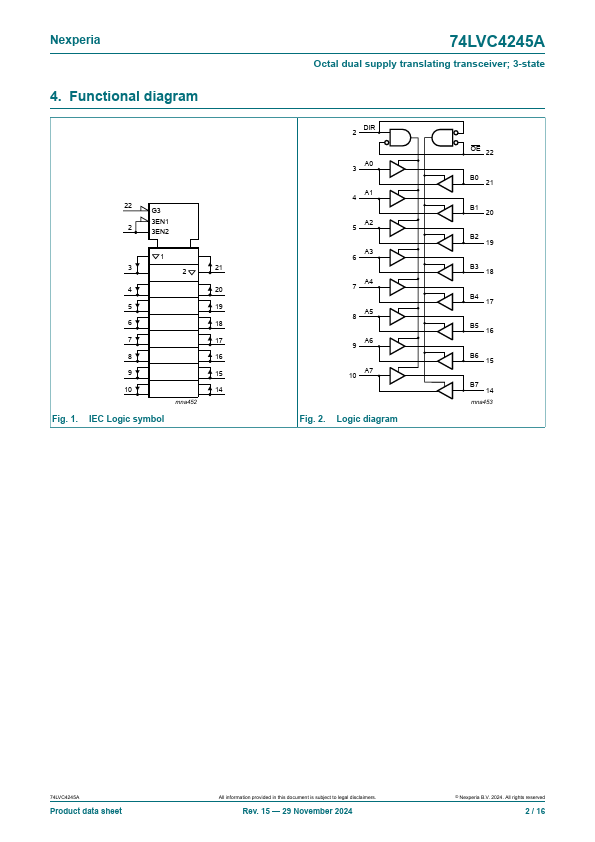

Additional preview pages of the 74LVC4245A datasheet.

74LVC4245A Product details

Description

The 74LVC4245A is an octal dual supply translating transceiver featuring 3-state bus compatible outputs in both send and receive directions.

Features

5 V tolerant inputs/outputs, for interfacing with 5 V logic.
Wide supply voltage range:.
3 V bus (VCC(B)): 1.5 V to 3.6 V.
5 V bus (VCC(A)): 1.5 V to 5.5 V.
CMOS low-power consumption.
TTL interface capability at 3.3 V.
Overvoltage tolerant control inputs to 5.5 V.
High-impedance when VCC(A) = 0 V.
Complies with JEDEC standard no. JESD8B/JESD36.
Latch-up performance meets requirements of JESD78 Class 1.
